Universal MIL
MIL Harness

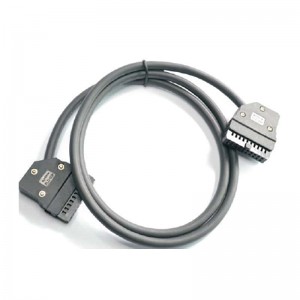

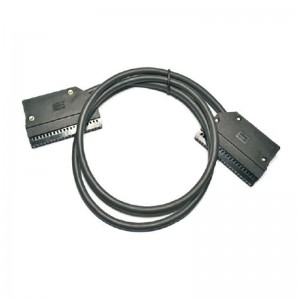

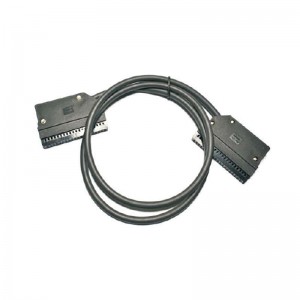

Mil Wire Harness Feature
The provincial space PLC uses a small path conductor to reduce the overall line diameter to the optimal value.
Universal provides single head, double head cable, a wider range of applications.
Beautiful, clean standard plug shell, the overall color coordination, beautiful; the cabinet wiring neat.
| Cable specifications | |
| Wire gauge | AWG28 |
| Conductor material | Multi-core copper wire |
| Insulation material | PE |
| Withstand voltage | AC500V/min |
| Insulation impedance (20℃) | ≥50 MΩ / Kn |
Technical Parameter

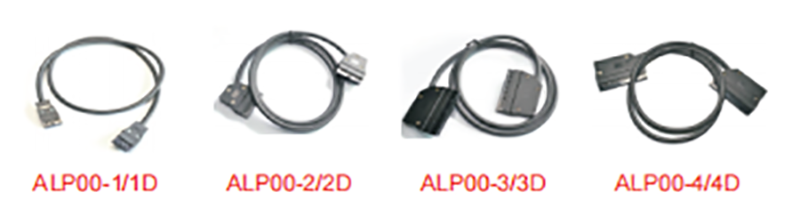

| Item No. | Image | CN1 | CN2 | Length |
| ALP00-1 |  |
10P/MIL
|
10P/MIL
|
500~2000 Note: the standard length is: 500mm, 1000mm, 1500mm, 2000mm four specifications three specifications, if you need to add 500mm unit incremental MIL wiring harness characteristic wiring diagram ARP608N-1 ARP608P-1 ARP608N-3 |
| ALP00-1D
|
 |
- |
10P/MIL
|
|
| ALP00-2
|
 |
20P/MIL
|
20P/MIL
|
|
| ALP00-2D
|
 |
- |
20P/MIL
|
|
| ALP00-3
|
 |
34P/MIL
|
34P/MIL
|
|
| ALP00-3D
|
 |
- |
34P/MIL
|
|
| ALP00-4
|
 |
40P/MIL
|
40P/MIL
|
|
| ALP00-4D
|
 |
- |
40P/MIL
|
|
Item No. |
Module to CN1 | Module to CN2 |
| Module | FA Connection Module | |
| ALP00-1 | 10PMIL control module |
ATP008 ARP008 ARP208 |
| ALP00-1D | Universal | |
| ALP00-2 | 20PMIL control module |
ATP016 ATP020 ARP016 ARP116 |
| ALP00-2D | Universal | |
| ALP00-3 | 34PMIL control module |
ATP034 |
| ALP00-3D | Universal | |
| ALP00-4 | 40PMIL control module |
ATP032 ATP040 ARP032 |
| ALP00-4D | Universal |

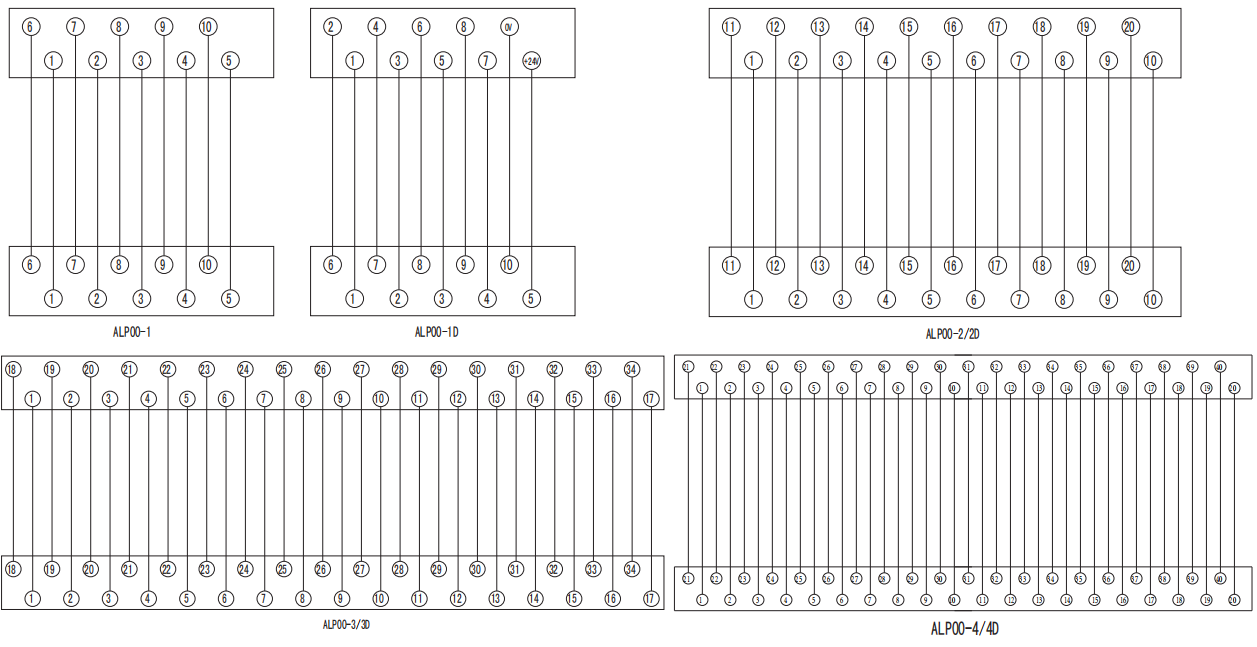

Circuit Diagram

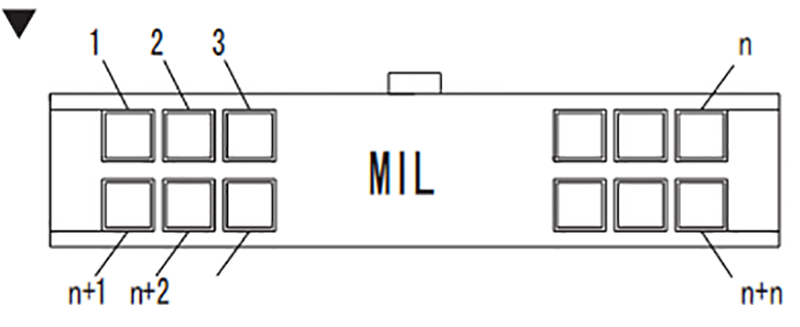

Hole Ranking Table
