Yaskawa ∑-V Series Servo Signal Harness-ALP24-1~2
Feature
Convenience .
Full use of plug-in connector to reduce rate of wring wrongly.
Specification
Designed for Brand Servo position control mode.
Beautiful, clean.
Standard plug housings,overall color coordination make more nesting of inside cabinet.
Technical Parameter
| Cable specifications | |
| Wire gauge | AWG28 |
| Conductor material | Multi-core copper wire |
| Insulation material | PE |
| Withstand voltage | AC500V/min |
| Insulation impedance (20℃) | ≥50 MΩ / Kn |

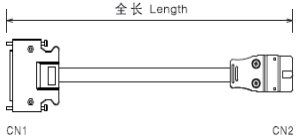

Outline Drawing
| Item No. |
Image |
CN1 |
CN2 |
Length |
| ALP24-1 |
|
50P/MDR |
10P/MIL |
500~2000
Note： Standard Length：500mm、1000mm、 1500mm、2000mm,if other specification,please increase by 500mm
|
| ALP24-2 |
Relay Port Description Tableri
|
Item No. |
CNI |
CN2 |
Remark |
|
|
Brand |
Servo Driver |
FA connecting module |
||
| ALP24-1 |
YASKAWA |
∑-V Series |
ATP102 、 ATP104 |
Differential drive method |
| ALP24-2 | Open Collector method | |||
