| Prod.Desp. |

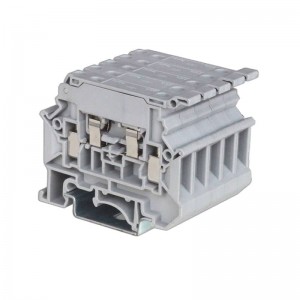

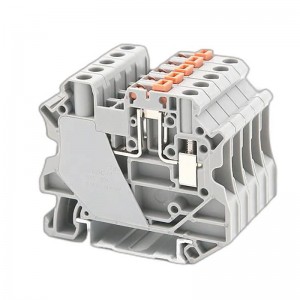

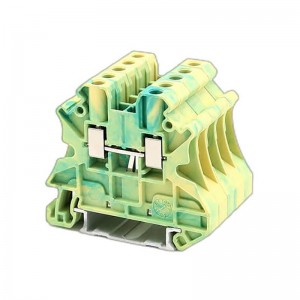

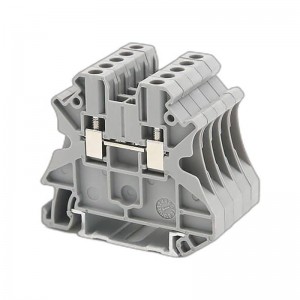

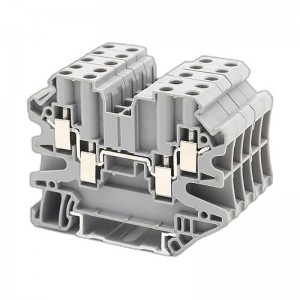

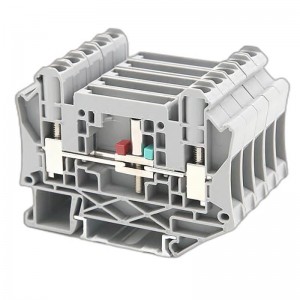

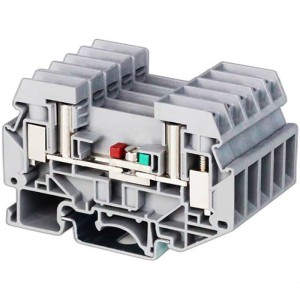

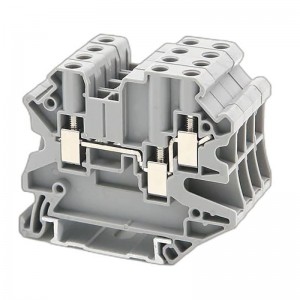

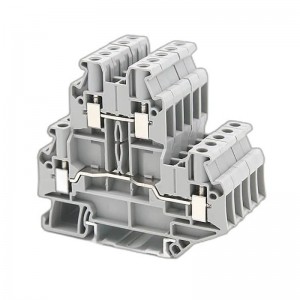

Din Rail Terminal Block-RUT Series Screw Connection RV |
| Item No. |
RUT2.5/RUT4/RUT6/RUT10/RUT16/RUT4-TWIN/RUT4-QUATTRO/RUTTT4/RUT4-HESI/RUT4-HEDI/RUT4-MT/RUT4-MP-P/P)/RUT6-RTK/S)/RUT6-T-HV/RUT6-T-HV P/P)/RUT2.5-PE/RUT4-PE |
| Material: |
PA/Brass |
| Thickness(mm) |
5.2/6.2/8.2/10.2/12.2 |
| Width(mm) |
47.7-55.3 |
| Depth(mm) |
47.5-55 |
| Connection |
Screw |
| Cross Section(mm2) |
0.14--25.0(Solid Wire)/0.14-25.0(Flexible Wire) AWG26-4 |
| Rated Voltage(V) |
1000 |
| Rated Current(A) |
24-76 |
| Strip Length(mm) |
8-14 |
| Flammability: |
V0 |
| Standard |
IEC60947-7-1;GB/T14048.7 |
| DIN Rail: |
U |
| Color: |
Grey(Optional: Blue/Red/Yellow/Green),Yellow-Green |
| End Plate |
D-RUT2.5/10;16;2.5/4-TWIN;4-QUATRO;TTB4;4-HESI;4-MT-P/P;6-RTK;6-T-HV P/P |
| Marking Strip: |
ZB |
| Jumper |
FBS |
| Certificate |
CE;RoHS,Reach |
