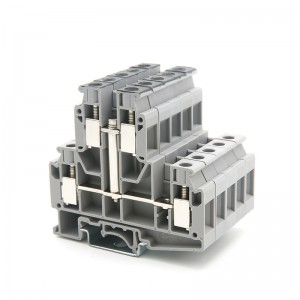

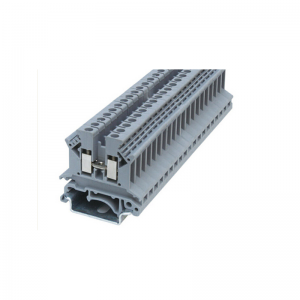

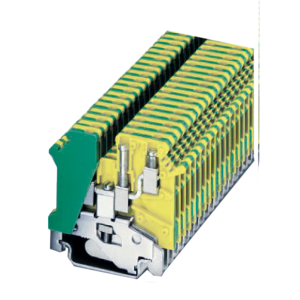

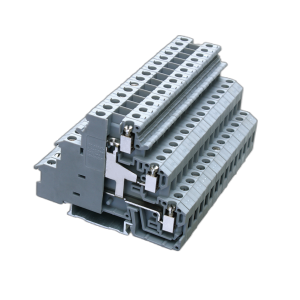

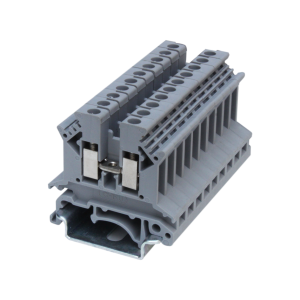

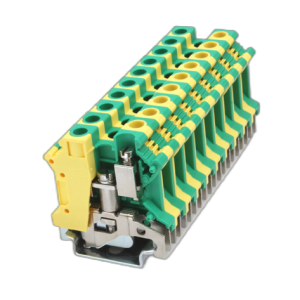

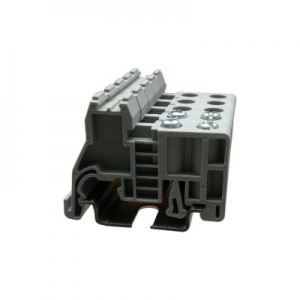

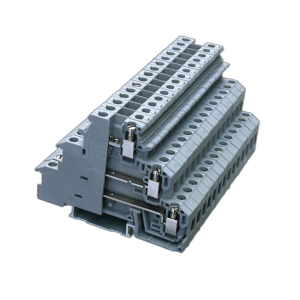

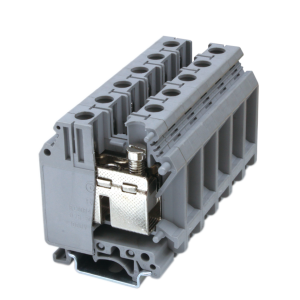

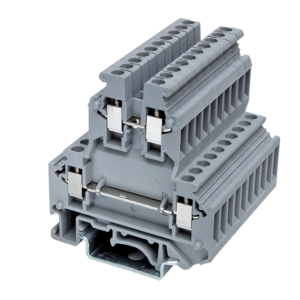

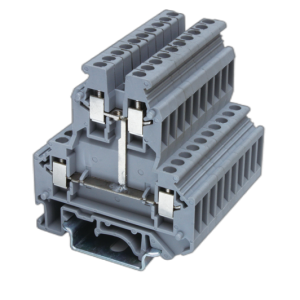

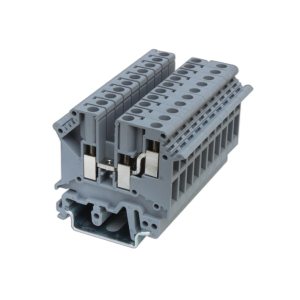

RUK terminal, mainly used for industrial wiring
Technical Parameter
| Prod.Desp. | Din Rail Terminal Block-RUK Series Screw Connection |
| Item No. | RUK1.5/RUK2.5B/RUK3N/RUK5N/RUK6N/RUK10N/RUK16N/RUIK16/RUK35/RUIK35/RUKH50/RUKH95/RUKH150/RUKH240/RUSLKG1.5N/RUSLKG2.5B/RUSLKG3N/RUSLKG5N/RUSLKG6N/RUSLKG10N/RUSLKG16N/RUISLKG16/RUSLKG35N/RUISLKG35/RUSLKG50/RUSLKG95/RUKK3/RUKKB3/RUKK5/RUKKB5/RUKKB10/RUKK3-PV/RUKK5-PV/RUKKB10-PV/RMBKKB2.5-LA/RMBKKB2.5-PV-LA/RDIKD1.5/RDIKD1.5-PV/RUKK5-PE/RUKKB5-PE/RUDK3/RUDK4/RUDK4-PE/RUK3-TWIN/RUK5-TWIN/RUK10-TWIN/RMTK-P/P)/RUK5-MTK-P/P)/RUDK4-MTK-P/P)/RURTK/S)/RMTK/S)/RSAK1 EN/RSAK1EN-N/RUK5-HESI/RUK-SI/RUK10-DREHSI/RUK10-DREHSI-6.3X32/RAKG4/RAKG16/RAKG35/RMJ2.5/RMJ2.5E/RMJ2.5BE/RSK-8/RSK-14/RP-1-2)/RP1-2/28)/RP1-2/35)/RP1-3/RPB20/40-4)/RP-2/RP2-28)/RPF |
| Material: | PA/Brass |
| Thickness(mm) | 5.2/6.2/8.2/10.2/12.2/15.2/20/25/31/36 |
| Width(mm) | 42.5-83 |
| Depth(mm) | 42-97.5 |
| Connection | Screw |
| Cross Section(mm2) | 0.25--240.0(Solid Wire)/0.25-240.0(Flexible Wire) AWG26-4/0 |
| Rated Voltage(V) | 690-1000 |
| Rated Current(A) | 17.5-415 |
| Strip Length(mm) | 8-40 |
| Flammability: | V0 |
| Standard | IEC60947-7-1;GB/T14048.7 |
| DIN Rail: | U |
| Color: | Grey(Optional: Blue/Red/Yellow/Green),Yellow-Green |
| End Plate | D-RUK2.5/3/16);K3/5;KB3/5;KB10;RMBKKB2.5-LA;DK4;K5-TWIN;RMTK-P/P;DL4’RURTK;AP-RSAK1EN; |
| Marking Strip: | ZB5-15 |
| Jumper | FBS |
| Certificate | CE/RoHS/REACH;UL(RUK Series) |

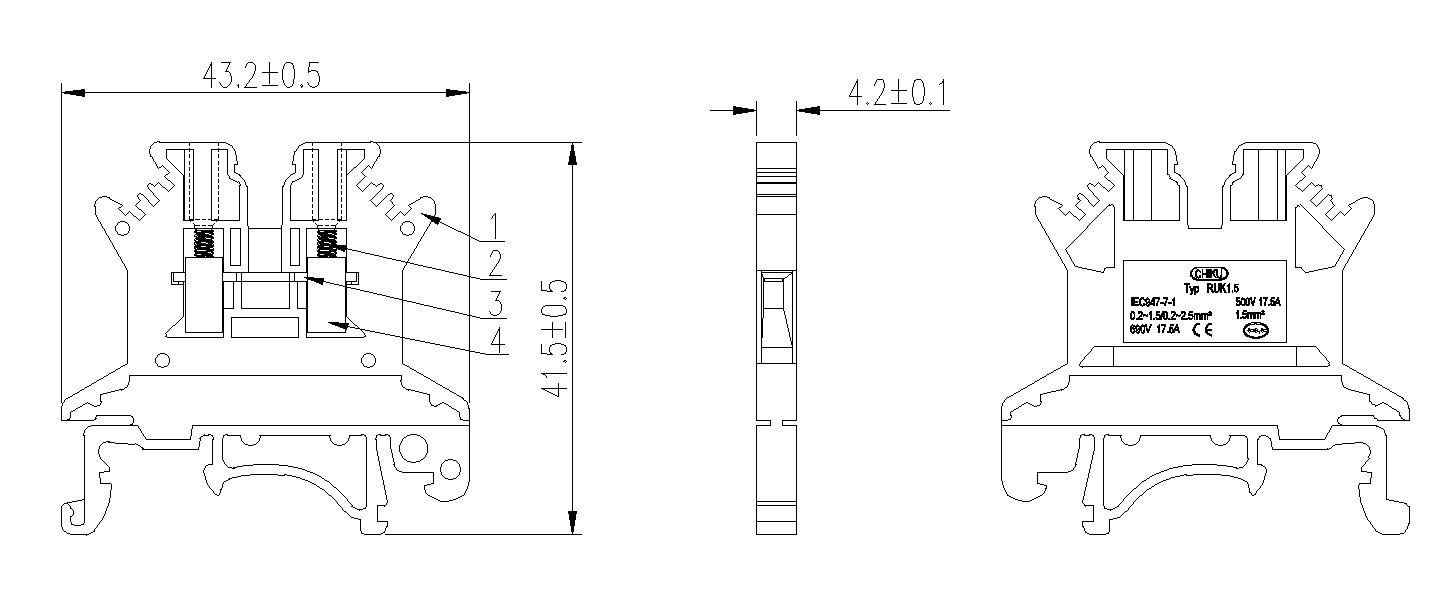

Dimension
BOM
|
No. |
Description |
Material |
Finish |
Qty |
Color |
Remark |
|
1 |
House |
PA |
/ |
1 |
Grey |
UL94 V-0 |
|
2 |
Screw |
Brass/steel |
Nickel |
2 |
Natural |
/ |
|
3 |
Conductor |
brass |
Nickel |
1 |
Natural |
/ |
|
4 |
Cage |
brass |
Nickel |
2 |
Natural |
/ |
Accessory
UBE/D KLM-A UC-TMF6 E/UK(N)
| Terminal marker block, used Mark for terminal on guide rail Remember, can write identification number | Used for wiring when the terminal is used, it is used in the middle Grouping marks between, used in fixed Middle mounting and marking identification of pieces | Professional design in Wiring terminals are used in the usual In this case, you can use a blank mark
Write or use typography 1-100 Characters, special characters can be customized |
Used in the end The first and the last parts of the device are fixed terminals Function, usually in a group With the two. |
D-RUK
DIN rail
FBI 10-4

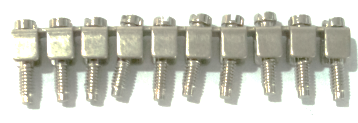

| It is specially designed for RUK terminal. It is used to close the bare metal part of the terminal at the end of the product to protect the terminal from oxidation. | The terminal grouping partition is used to separate and break the connection between terminals when different terminals are used, and can also play the effect of interval grouping. | TERMINAL short connector, professionally designed for short circuit connection between terminals, 2-10 bits can be connected according to different circumstances. | TS35 Steel material, galvanized surface, used for installation and fixation of terminals. |
Storage Condition
Stored in the air circulation and relative humidity is not more than 80%, the temperature is not higher than +40℃, not less than -10℃ warehouse;
Storage of ambient air free from acidic, alkaline or other corrosive gases.
Environmental compliance
Product design meets Rosh requirements.
