RUG-R relay embedded terminal block

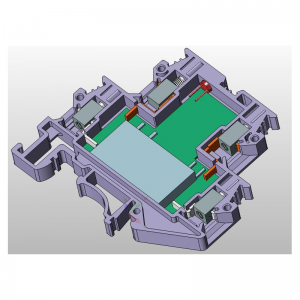

RUG-R relay embedded terminal block Featured Image
  • RUG-R relay embedded terminal block
  • RUG-R relay embedded terminal block
  • RUG-R relay embedded terminal block
  • RUG-R relay embedded terminal block
  • RUG-R relay embedded terminal block
  • RUG-R relay embedded terminal block
  • RUG-R relay embedded terminal block

Short Description:

RUG -* series is a normally open type built-in relay coupling terminal, which is mainly isolated by small ultra-thin relay. As a peripheral device for process control, RUG -* series realizes the matching of level and power. It has small volume, high sensitivity, reasonable structure and wide application. Various specifications, equipped with indicator device.


Product Detail

Product Tags

Technical Parameter

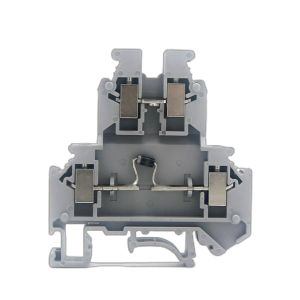

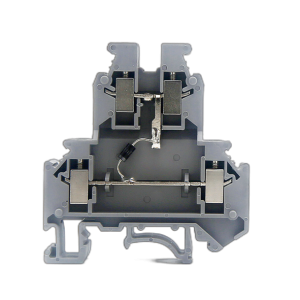

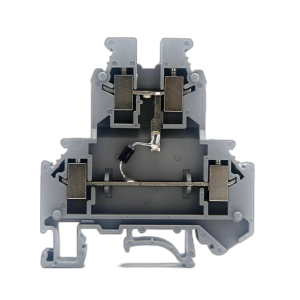

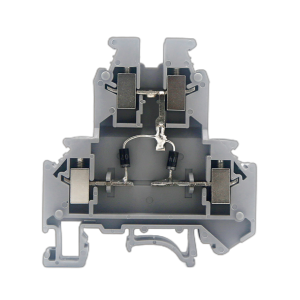

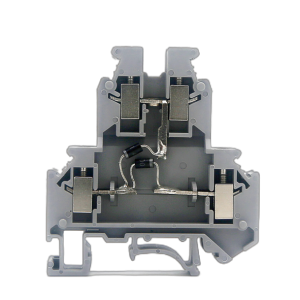

Prod.Desp. Din Rail Functional Terminal Block-RUG/D Series Diode
Item No. RUG/D-A;RUG/D-B;RUG/D-C;RUG/D-D;RUG/D-E
Material: PA/Brass
Thickness(mm) 6.2
Width(mm) 56
Depth(mm) 62
Connection Screw
Cross Section(mm2) 0.2--6.0(Solid Wire)/0.2-4.0(Flexible Wire) AWG16-10
Rated Voltage(V) 500
Rated Current(A) 32
Strip Length(mm) 8
Flammability: V0
Standard IEC60947-7-1;GB/T14048.7
DIN Rail: U/G
Color: Grey(Optional: Yellow,Orange)
End Plate D-RUKK3/5
Marking Strip: ZB6
Jumper FBI/EB10-6
Certificate
Prod.Desp. Din Rail Functional Terminal Block-RUG-O Series Optocoupler
Item No. RUG-O-110(220)VDC-L-50mA;RUG-O-110(220)VDC-H-50mA;      RUG-O-110(220)VAC-L-50mA;RUG-O-110(220)VAC-H-50mA

RUG-O-5(12)(24)(48)(60)(110)(220)VDC-L-100mA;              RUG-O-5(12)(24)(48)(60)(110)(220)VDC-H-100mA

RUG-O-24(110)(220)VAC-L-100mA;                          RUG-O-24(110)(220)VAC-H-100mA

RUG-O-5(12)(24(48)(60)(110)(220)VDC-L-200(300)(500)mA;      RUG-O-5(12)(24(48)(60)(110)(220)VDC-H-200(300)(500)mA

RUG-O-5(12)(24(48)(60)(110)(220)VAC-L-200(300)(500)mA;      RUG-O-5(12)(24(48)(60)(110)(220)VAC-H-200(300)(500)mA

RUG-O-5(12)(24)(48)(60)(110)(220)VDC-L-1(2)(5)A;             RUG-O-5(12)(24)(48)(60)(110)(220)VDC-H-1(2)A

RUG-O-24(48)(60)(110)(220)VAC-L-1(2)A;                     RUG-O-24(48)(60)(110)(220)VAC-H-1(2)A
Material: PA/Brass
Thickness(mm) 6.2
Width(mm) 59.3
Depth(mm) 65.8
Connection Screw(M3)
Cross Section(mm2) 0.2--6.0
Rated Voltage(V) 5/12/24/48/60/110/220
Rated Current(A) 50mA/100mA/200mA/300mA/500mA/1A/2A/5A
Strip Length(mm) 9-10
Flammability: V0
Standard IEC60947-5-1;GB/T14048.5
DIN Rail: U
Color: Grey
Operation Temp. -25℃--+70℃
Area Humility 5%-95%
IP Level IP20
Surge Anti-interference 2KV
Group Pulse Anti-Interference 4KV
ESD Anti-interference 8KV
Certificate CE
Prod.Desp. Din Rail Functional Terminal Block-RUG-R Series Relay built-in

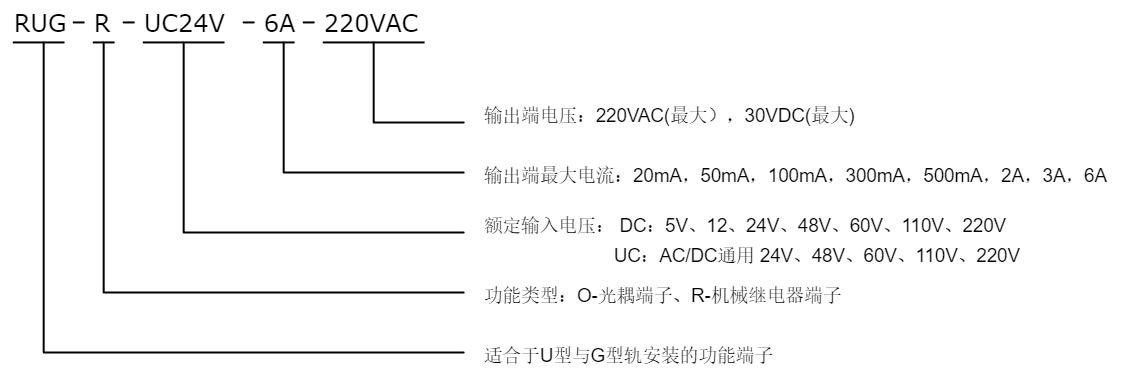

Item No. RUG-R-5VDC-250VAC/30VDC-6A; RUG-R-12VDC-250VAC/30VDC-6A; RUG-R-24VDC-250VAC/30VDC-6A;

RUG-R-24VAC/DC-250VAC/30VDC-6A; RUG-R-48VAC/DC-250VAC/30VDC-6A;RUG-R-60VAC/DC-250VAC/30VDC-6A

RUG-R-110VAC/DC-250VAC/30VDC-6A;RUG-R-220VAC/DC-250VAC/30VDC-6A
Material: PA/Brass
Thickness(mm) 6.2
Width(mm) 59.3
Depth(mm) 65.8
Connection Screw(M3)
Cross Section(mm2) 0.2--6.0(Solid wire)/0.2-4.0(Flexible wire)
Rated Voltage(V) 5/12/24/48/60/110/220
Rated Current(A) 6A
Strip Length(mm) 9-10
Flammability: V0
Standard IEC61810-1/GB/T21711.1;IEC61010-2-201/GB4793.1
DIN Rail: U
Color: Grey
Contact Pair Open
Contact Material Silver Alloy
Max.Switch Power 1500VA.180W
Surge Anti-interference 2KV
Group Pulse Anti-Interference 4KV
ESD Anti-interference 8KV
Certificate CE
Prod.Desp. Din Rail Functional Terminal Block---RUG-SSR Series Solid State Relay built-in
Item No. RUG-SSR-5(12)(24)(48)(60)(110)(220)VDC-L-MO-0.1A;          RUG-SSR-5(12)(24)(48)(60)(110)(220)VDC-H-MO-0.1A

RUG-SSR-24(48)(60)(110)(220)VAC-L-MO-0.1A;                RUG-SSR-24(48)(60)(110)(220)VAC-H-MO-0.1A

RUG-SSR-5(12)(24)(48)(60)VDC-H-TZ-0.3(0.6)(1)(2)A;           RUG-SSR-24(48)(60)VAC-H--TZ-0.3(0.6)(1)(2)A

RUG-SSR-5(12)(24)(48)(60)VDC-H-TR-0.3(0.6)(1)A;             RUG-SSR-24(48)(60)VAC-H-TR-0.3(0.6)(1)A
Material: PA/Brass
Thickness(mm) 6.2
Width(mm) 59.3
Depth(mm) 65.8
Connection Screw(M3)
Cross Section(mm2) 0.2--6.0
Rated Voltage(V) 5/12/24/48/60/110/220
Rated Current(A) 0.3A/0.6A/1A/2A
Strip Length(mm) 9-10
Flammability: V0
Standard IEC61810.1/GB/T21711.1;IEC81010-2-201/GB4793.1
DIN Rail: U
Color: Grey
Operation Temp. -25℃--+70℃
Area Humility 5%-95%
IP Level IP20
Surge Anti-interference 2KV
Group Pulse Anti-Interference 4KV
ESD Anti-interference 8KV
Certificate CE

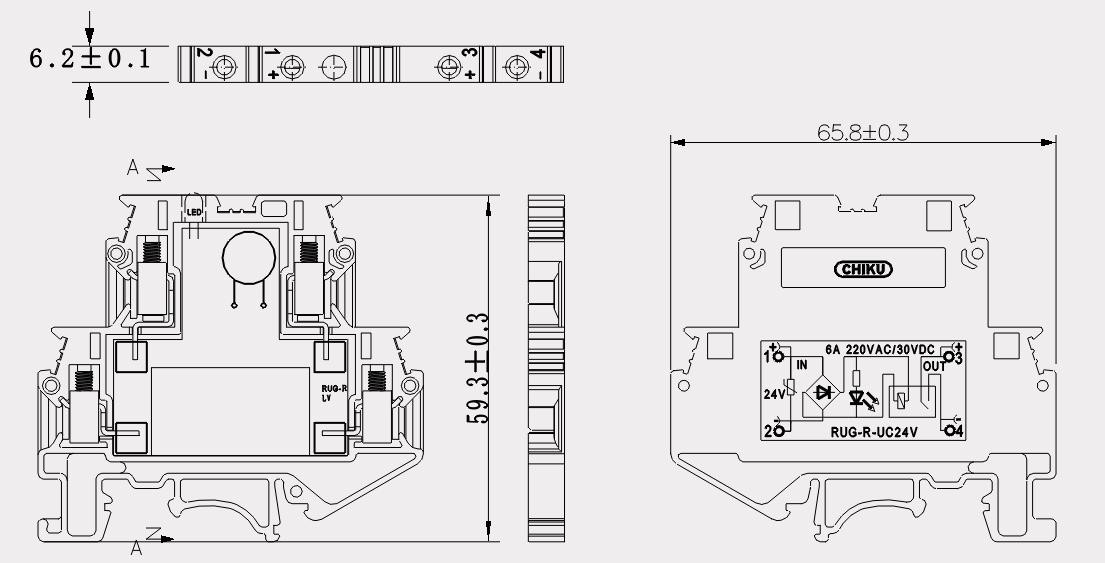

Dimension

Layout（unit：mm）

RUG-R-0001 (1)
RUG-R-0001 (6)

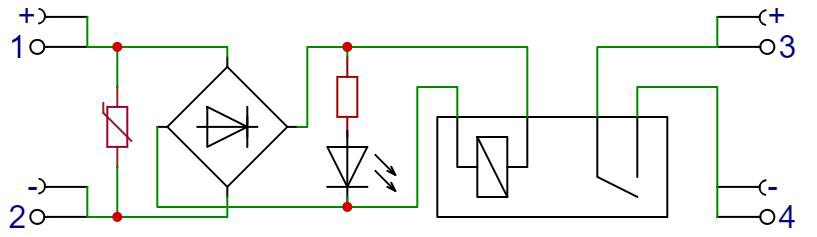

Diagram of electrical connection

RUG-R-0001 (3)

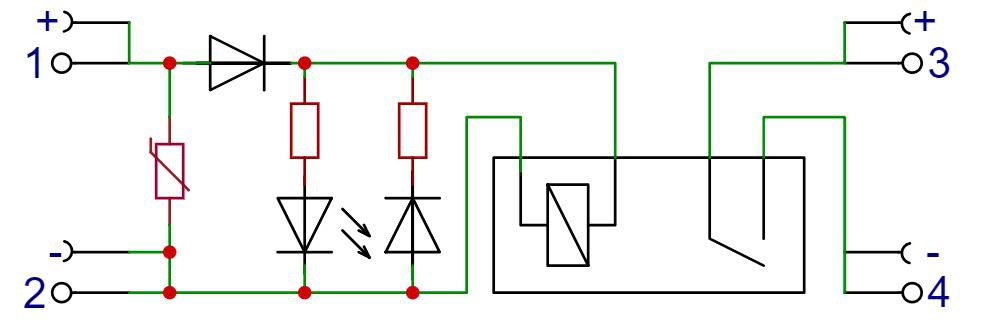

Model No.：RUG-R-DC5V，RUG-R-DC12V

RUG-R-0001 (4)

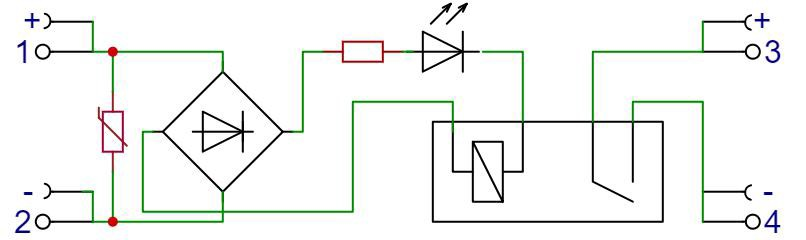

Model No.：RUG-R-UC110V，RUG-R-UC220V

RUG-R-0001 (5)

Caution

●The company shall be responsible for the quality problems caused by unauthorized disassembly of the product;
●Please do not debug the characteristics of the terminal at willing. The factory will not be responsible for the product quality problems caused by this.
