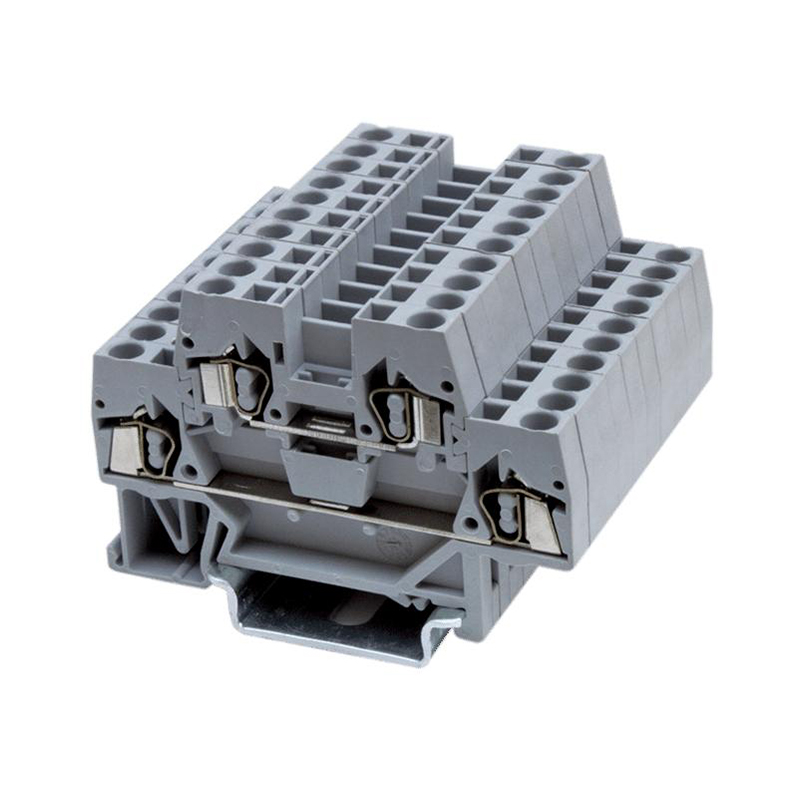

RST Spring Cage Series

Short Description:

RST Series feed-thought terminal blocks is their space-saving design and optimized handing, the front connection of the ST Series offers additional space for wiring between the cable ducts.

The double bridge shaft allows individual chain bridging by means of plug-in bridges, for testing and labeling, corresponding accessories are available.

The RST spring cage terminal blocks are available with cross sections of 1.5mm² , 2.5mm² ,4mm² ,6mm².

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

RST Spring cage terminal: spring cage terminal block with cross section of1.5mm2,2.5mm2,4mm2,6mm2

Send email to us

Product Detail

Product Tags

Technical Parameter

Prod.Desp.	Din Rail Terminal Block-RST Series Spring Cage
Item No.	RST1.5/RST2.5/RST4/RST6/RST10/RST16/RST1.5-TWIN/RST2.5-TWIN/RST4-TWIN/RST6-TWIN/RST10-TWIN/RST16-TWIN/RST1.5-QUOTTRO/RST2.5-QUOTTRO/RST4-QUOTTRO/RSTT2.5/RSTTB2.5/RSTT4/RST1.5-PE/RST2.5-PE/RST4-PE/RST6-PE/RST10-PE/RST16-PE/RST1.5-TWIN-PE/RST2.5-TWIN-PE/RST4-TWIN-PE/RST6-TWIN-PE/RST10-TWIN-PE/RST16-TWIN-PE/RST1.5-QUOTTRO-PE/RST2.5-QUOTTRO-PE/RST4-QUOTTRO-PE/RST4-HESI/RST2.5M-DIN/RST2.5MT-DIN/RST2.5M-MID/RST2.5M-MID-A/RST2.5M-MID-B/RST2.5MT-MID/RST2.5MT-MID-A/RST2.5MT-MID-B/RST2.5MT-PE-DIN/RST2.5HT-MID-B/RST2.5HT-MID-A/RST1.5H-MID-B
Material:	PA/Brass
Thickness(mm)	4/5/6/8/10/12
Width(mm)	34.5-45
Depth(mm)	52-74.5
Connection	Spring Cage
Cross Section(mm²)	0.25--16.0(Solid Wire)/0.2-16.0(Flexible Wire)
Rated Voltage(V)	600-800
Rated Current(A)	18-76
Strip Length(mm)	9-14
Flammability:	V0
Standard	IEC60947-7-1;GB/T14048.7
DIN Rail:	U
Color:	Grey(Optional: Blue/Orange/Red),Yellow-Green
End Plate	D-RST2.5;4;6;10;16;2.5-TWIN;4-TWIN;6-TWIN;10-TWIN;16-TWIN;1.5-QUOTTRO;2.5-QUOTTRO,4-QUOTTRO;TB1.5;TB2.5;TB4;
Marking Strip:	WFB4/5/8/10/16
Jumper	FCB4/5/6/8/10
Certificate	CE/RoHS/REACH;
