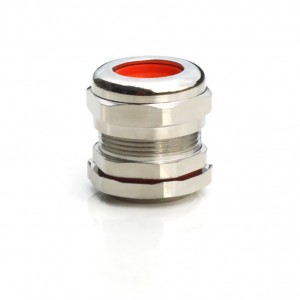

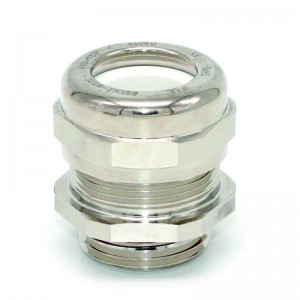

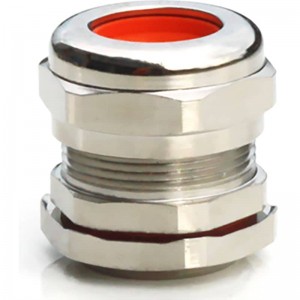

RSKM2-M Metal Cable Gland(Silica Gel Seal)
Technical Parameter
SKM Series Metal Cable Gland Coding Regulation.
| No. | Code | Code Description | Description |
| RSKM
RSKM1 RSKM2 |
metal cable gland(cable fastener：plastic claw+rubber seal）
metal cable gland(cable fastener：full-through rubber seal only ）
|
RSKM1:With teeth-type half-through seal RSKM2:With teeth-type full-through seal |
|
| D
RA EMV.SP EMV.SC D-EMV XXXX |
Double lock cable gland
Right-angle cable gland Spring shielding cable gland EMC Cable gland Double lock shielding cable gland Common cable gland without code |
RSKM-D-M16A.....
RSKM-RA-M16A..... RSKM-EMV.SP-M16A..... RSKM-EMV.SC-M16A..... RSKM-D-EMV-M16A..... RSKM-M16A..... |
|
| M
P N G |
Metric Thread
Germany standard American standard British standard |
RSKM-M16A.....
RSKM-P9A..... RSKM-N1/2A..... RSKM-G1/4A.... |
|
| 16 | Thread Specification | ||
| *2.0 | Pitch of Metric thread without code
if being confirmed in the table. |
RSKM-M16 *1.5 A.....RSKM-M16A....
RSKM-M16*2.0A..... Necessary |
|
| A
B C |
Identification cable range
|
RSKM-M16A..... Cable range:4-8
RSKM-M16B..... Cable range:2-6 RSKM-M16C..... Cable range:5-10 |
|
| 2x6(NxD)
N1xD1+N2xD2 |
Multi-entry with same cable spec.
Multi-entry with different cable spec. Single-entry without code |
RSKM-M16A-3X6.. D Ø6mmx3pcs
RSKM-M16A-1X2+2X6..... D Ø2mmx1pcs, D Ø 6mmx2pcs |
|
| L | Thread lengthened
Common ones without code |
RSKM-M16A-1X2+2X6-L-C.....
RSKM-M16A-1X2+2X6-C.... |
|
| C
AL |
Brass,Nickel plated
AL alloy |
RSKM-M16A-1X2+2X6-C.....
RSKM-M16A-1X2+2X6-AL... |
|
| O | O-ring | RSKM-M16A-1X2+2X6-C-O... | |
| M | Nut (Optional) | RSKM-M16A-1X2+2X6-OM |
Selection Method
1、Please Confirm Cable Material.
2、Please Confirm the cable range acc. to cable diameter.
3、Please Confirm the thread spec.acc.to diameter of bore through.
RSKM2-M Metal Cable Gland( Silica gel seal)
Description
Material：Brass,Nickel plated
● Sealing Material：White silica gel(feed- through).
● IP Grade：Clamping range,O-Ring，IP68.
● Temperature Limited：-50℃-180℃.
● Porducts Feature:Connecting more closer and securer with O-ring.
|
Cable Spec |
Cable (OD) |
Item No. |
Cable Range |
Wrench (SW1) |
Nut (SW2) |
Thread Length (GL) |
Seal I.D. (d0) |
Pitch (CL) |
Body Bore |
Max.Outline Size |
Drawing Force |
| 70mm2 | 18.5-20.5 | RSKM2-M32A-C-O | 17-21 | 36 | 36 |
9 |
22 | >45 | 24.5 | 39.5 | 55-70 |
| 50mm2 | 17.5-19 | RSKM2-M32A-C-O | 15-20 | 34 | 34 |
9 |
20 | >42 | 24 | 37 | 45-55 |
| RSKM2-M32A-C-O | 15-20 | 34 | 34 |
9 |
20 | >42 | 24 | 37 | 45-55 | ||
| 35mm2 | 13-15.5 | RSKM2-M32A-C-O | 14-17 | 28 | 28 |
7 |
17 | >38 | 18.4 | 33 | 40-50 |
| 25mm2 | 12.5-14 | RSKM2-M32A-C-O | 12-15 | 28 | 28 |
7 |
15.4 | >35 | 18.6 | 30 | 35-42 |
| 16/25mm2 | 11.5-13 | RSKM2-M32A-C-O | 10-13.5 | 27 | 27 |
8 |
13.5 | >34 | 18 | 29 | 30-35 |
| 10mm2 | 7.5-9 | RSKM2-M32A-C-O | 6-9 | 22 | 22 |
7 |
9 | >29 | 10.8 | 24 | 25-30 |
| 10x0.75(multi-core) | 8.5-9 | RSKM2-M32A-C-O | 6-9.5 | 22 | 22 |
7 |
9.5 | >29 | 10.8 | 24 | 25-30 |
| 10x0.4(multi-core) | 6.5-7 | RSKM2-M32A-C-O | 5-7 | 18 | 18 |
7 |
7.4 | >25 | 10.2 | 20 | 20-25 |
