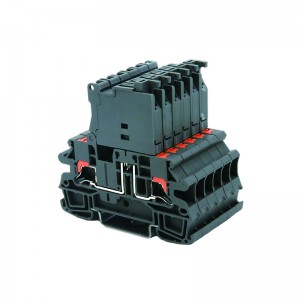

RPI 4-HESI Side Contact Fuse Push-in Terminal Block
Technical Parameter
| Prod.Desp. | Din Rail Terminal Block-RPI Series Side Contact Push-in Spring Connection |
| Item No. | RPI4-HESI |
| Material | PA/Brass |
| Thickness(mm) | 6.2 |
| Width(mm) | 69 |
| Depth(mm)(U7.5/U10/U15) | 65/67.5/72.5 |
| Connection | Spring Push-in |
| Cross Section(mm2) | 0.2--6.0(Solid Wire)/0.2-4.0(Flexible Wire) AWG24-10 |
| Rated Voltage(V) | 500 |
| Rated Current(A) | 6.3 |
| Strip Length(mm) | 12 |
| Flammability | V0 |
| Standard | IEC60947-7-3;GB/T14048.18 |
| DIN Rail | U |
| Color | Iron Grey |
| End Plate | D-RPI 4-HESI |
| Marking Strip | ZB6/ZB6 Orange |
| Jumper | FBS2-6/3-6/4-6/5-6/10-6 |
| Certificate | CE/RoHS/REACH |
| Standard | IEC60947-7-3 GB/T14048.18 |
