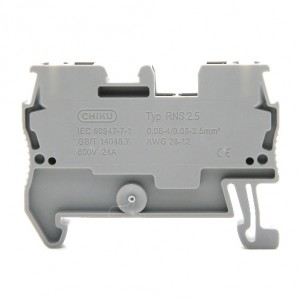

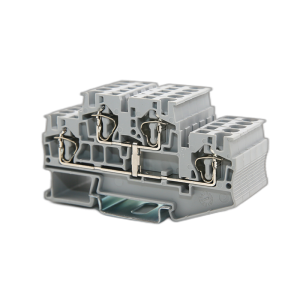

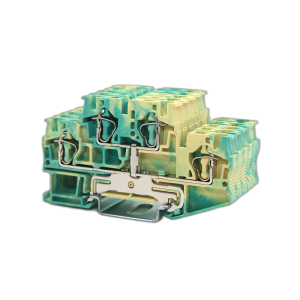

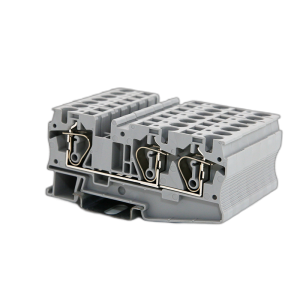

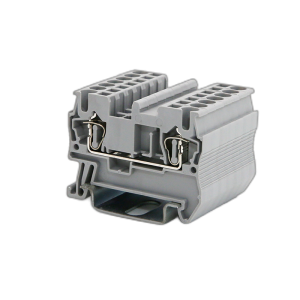

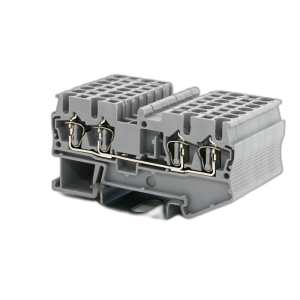

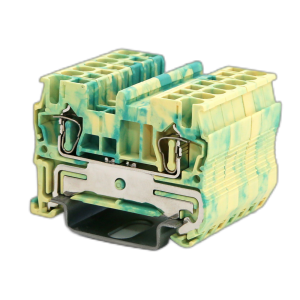

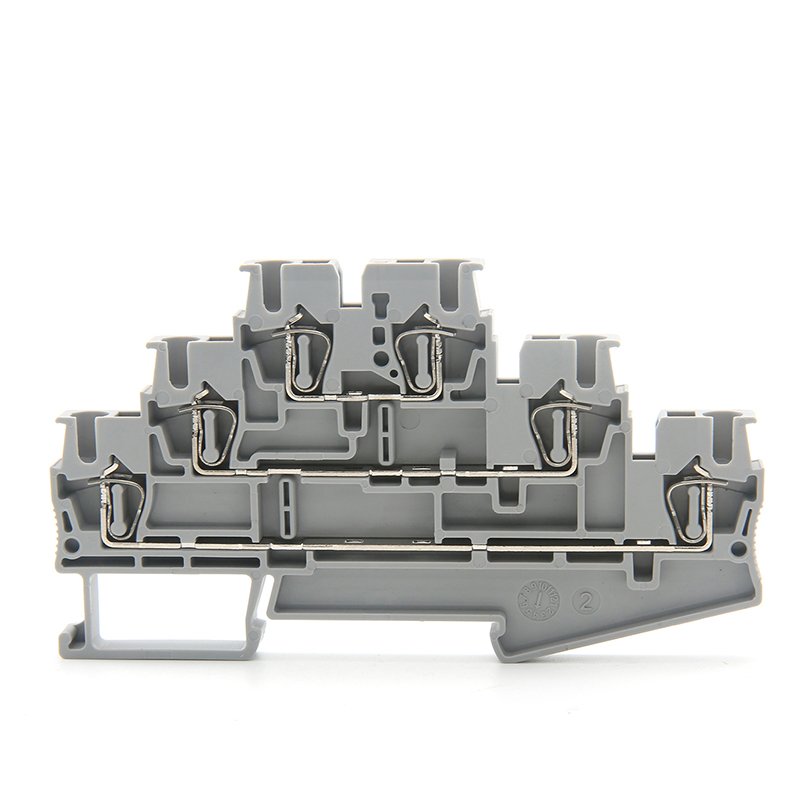

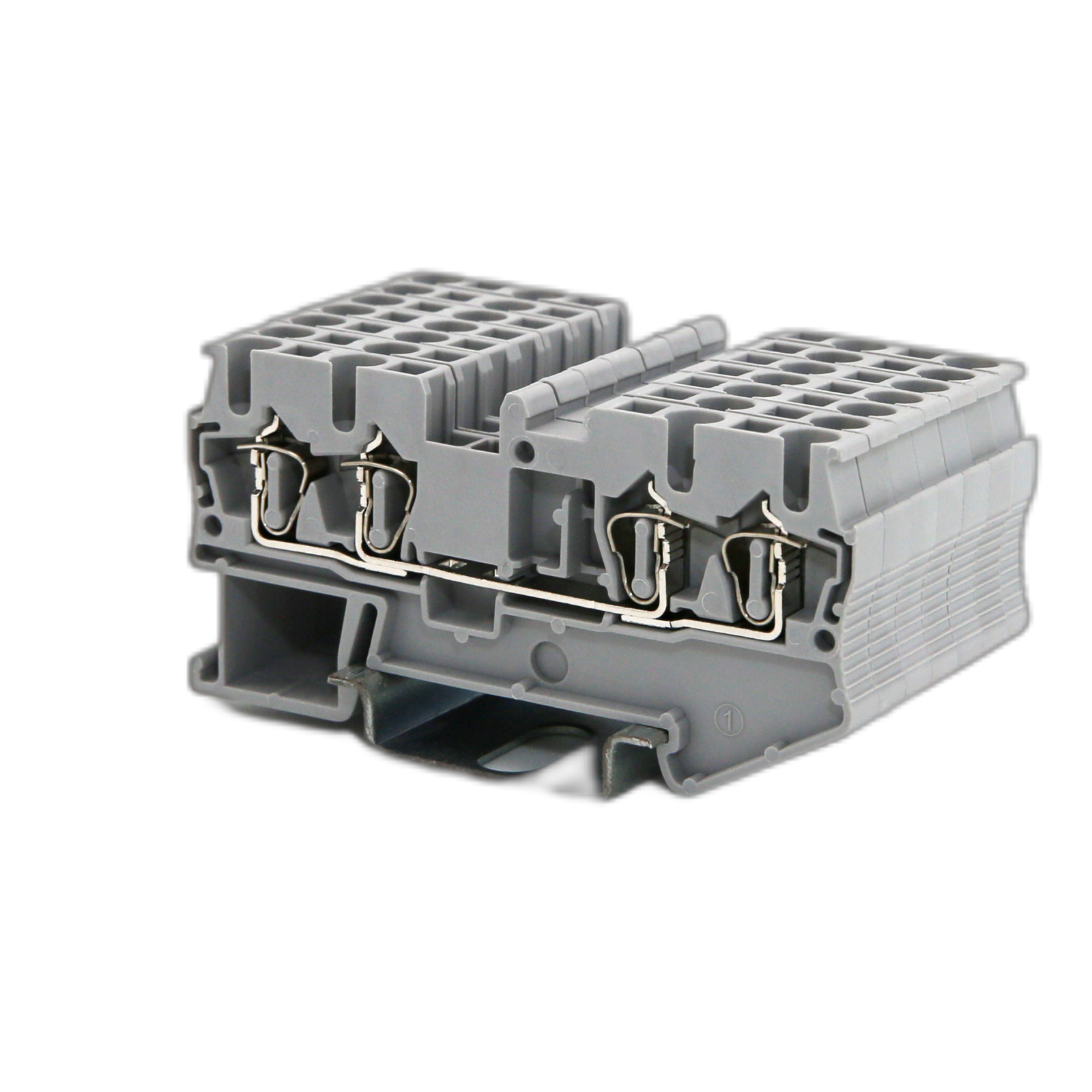

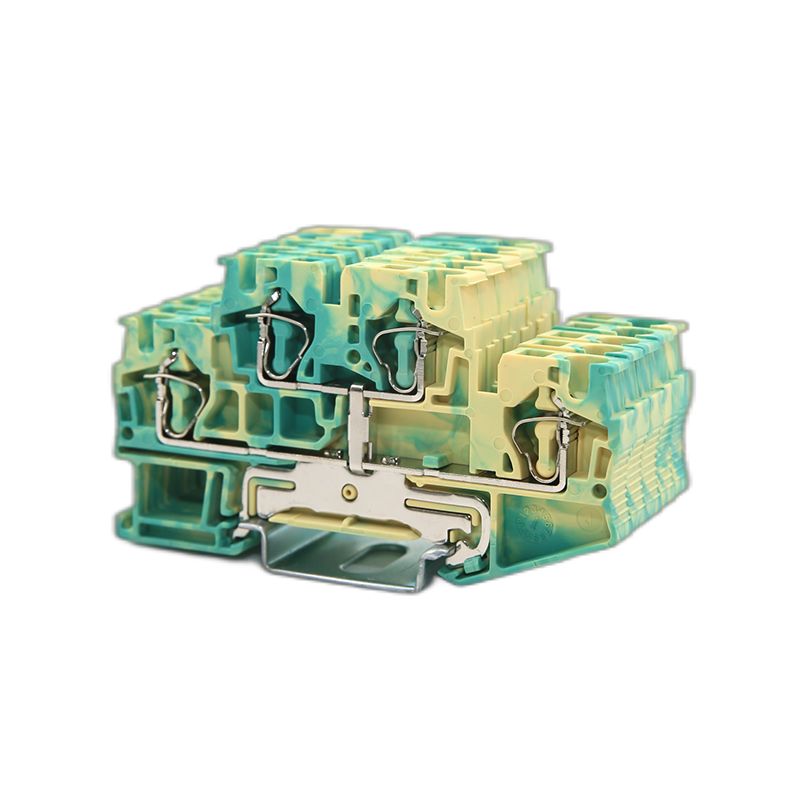

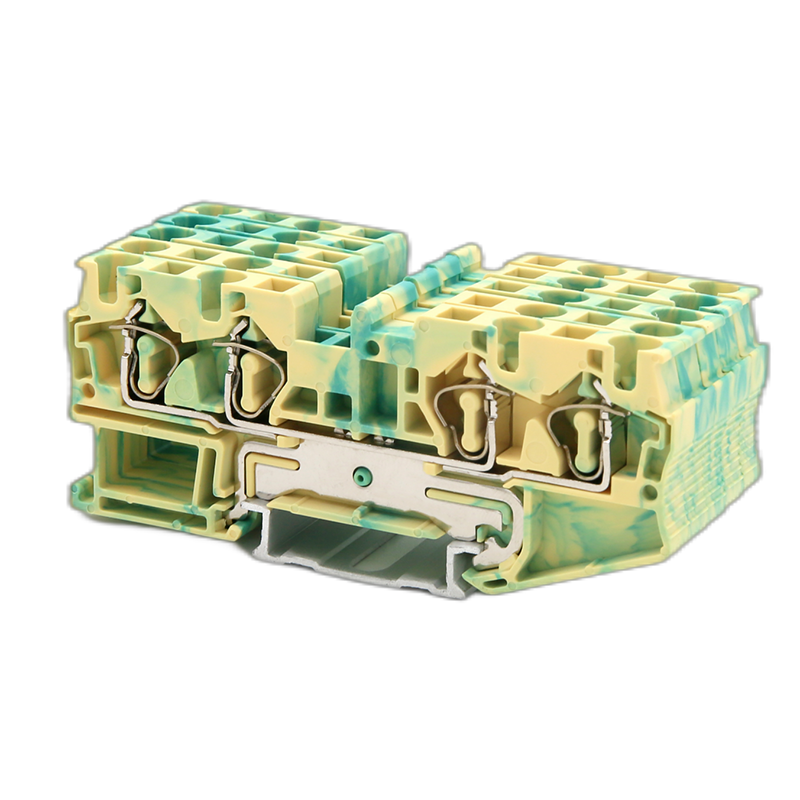

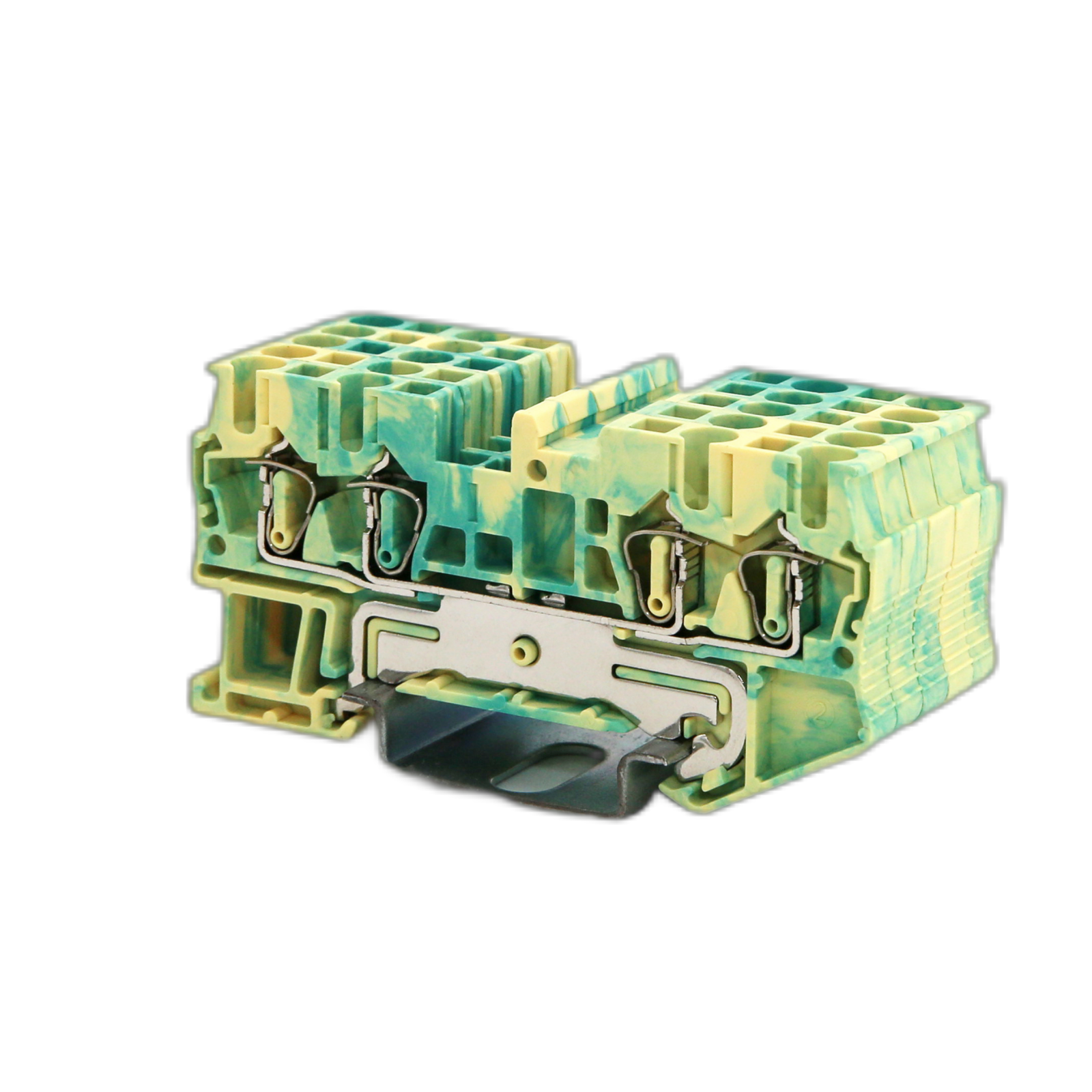

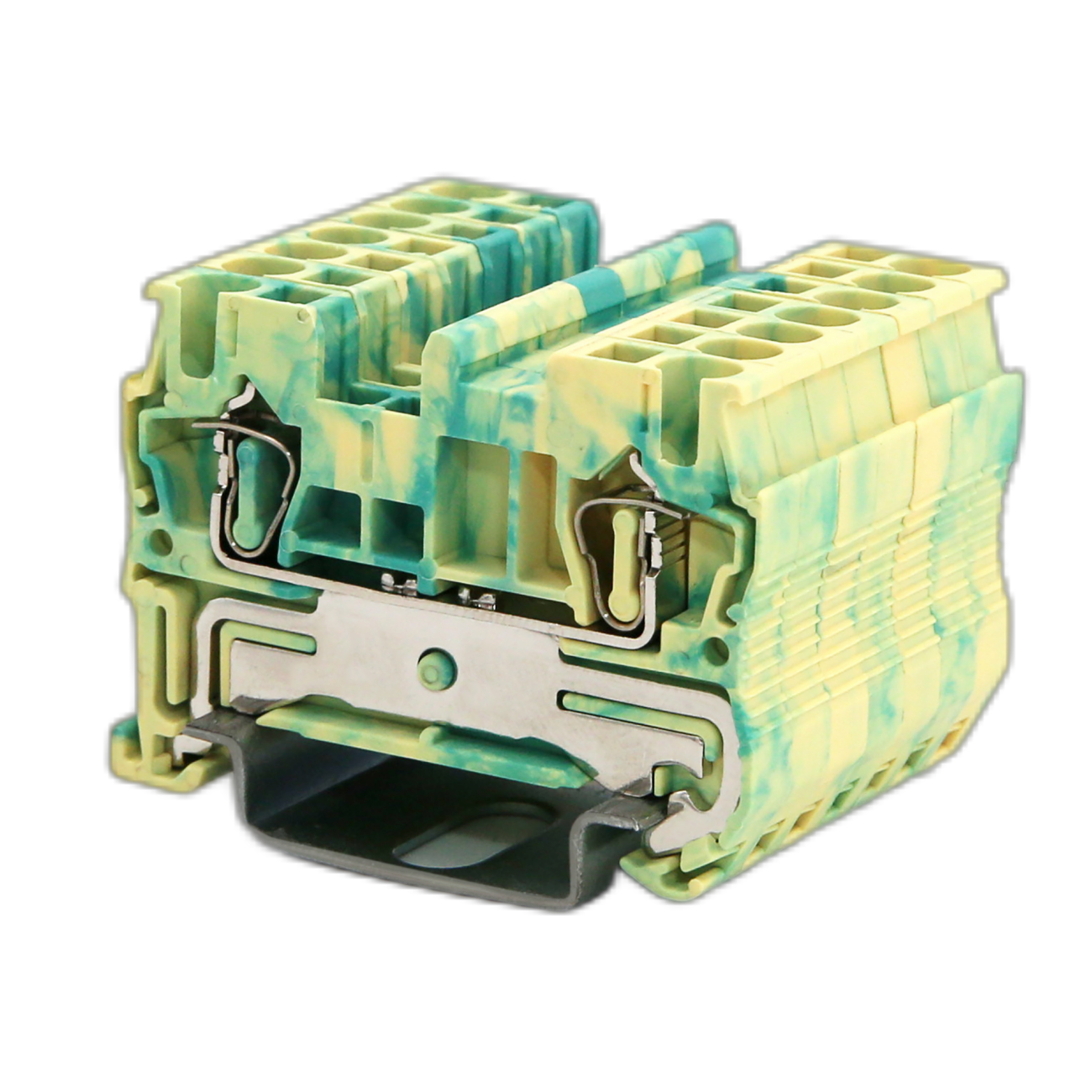

RNS series spring sage terminal block

Short Description:

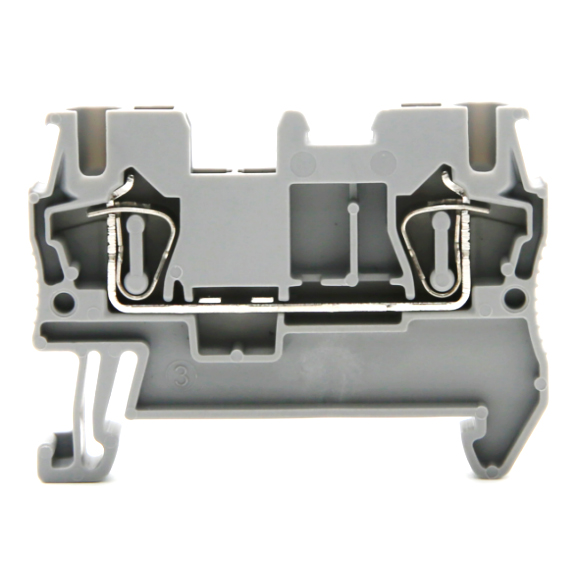

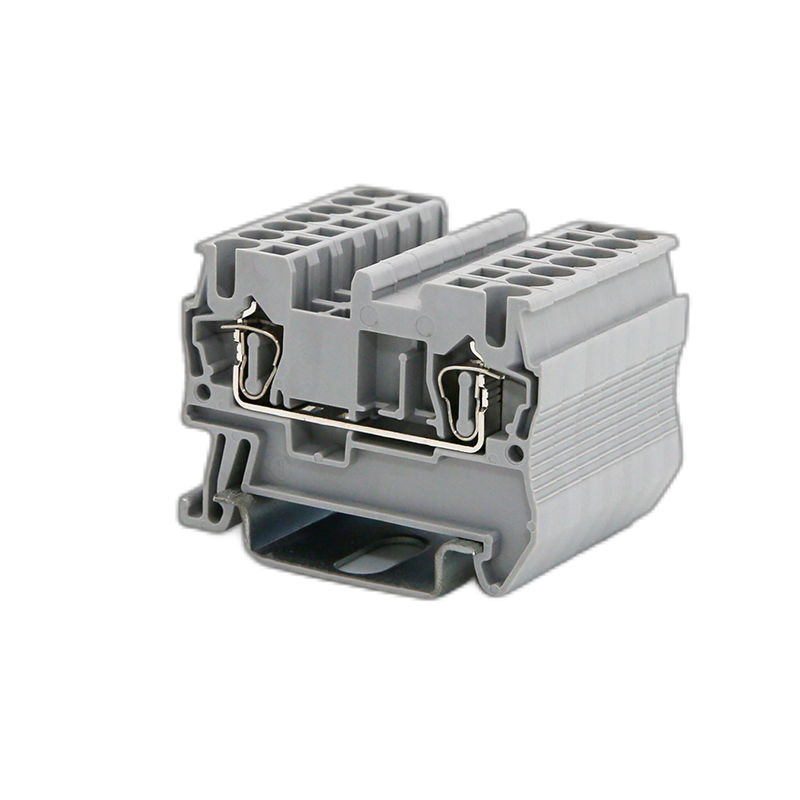

1. Push in spring cage terminal

Compact design and upper connection mode not only save space, but also facilitate the connection in narrow space.

The connection space is large, which can hold the wire with sleeve and plastic card sleeve (nominal cross section).

Continuous double bridge connections save voltage distribution time and allow storage of test accessories.

2. Product Image

Send email to us

Product Detail

Product Tags

Technical Parameter

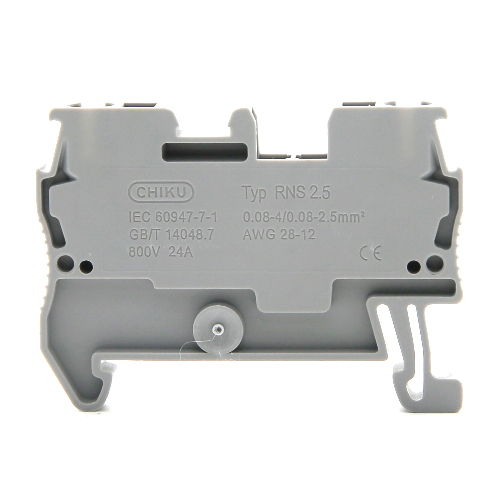

Prod.Desp.	Din Rail Terminal Block-RNS Series Spring Cage

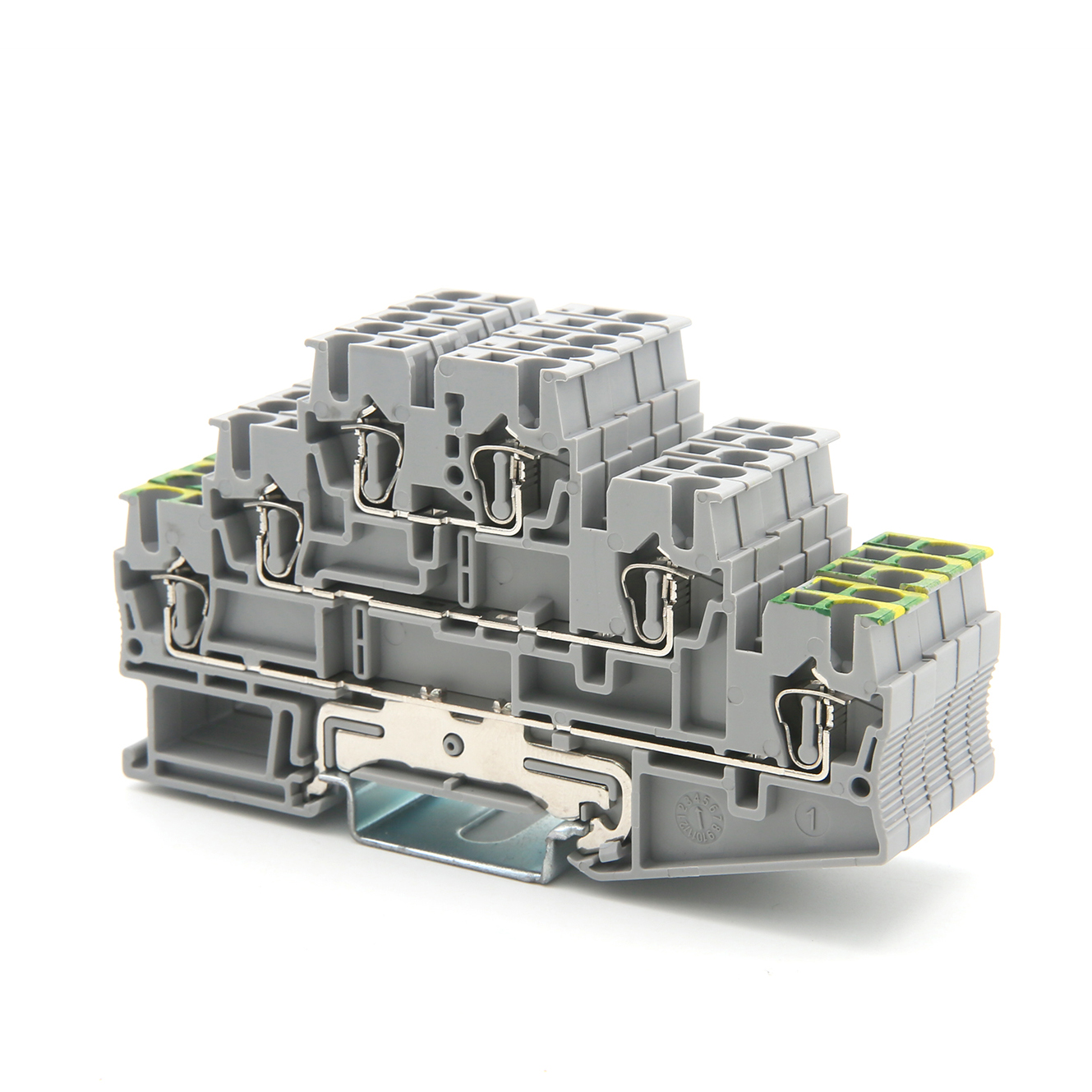

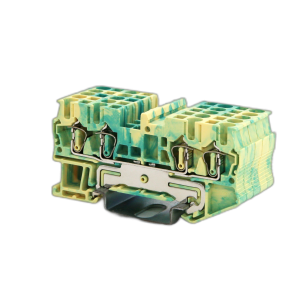

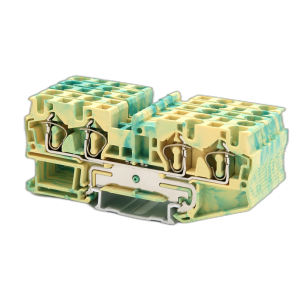

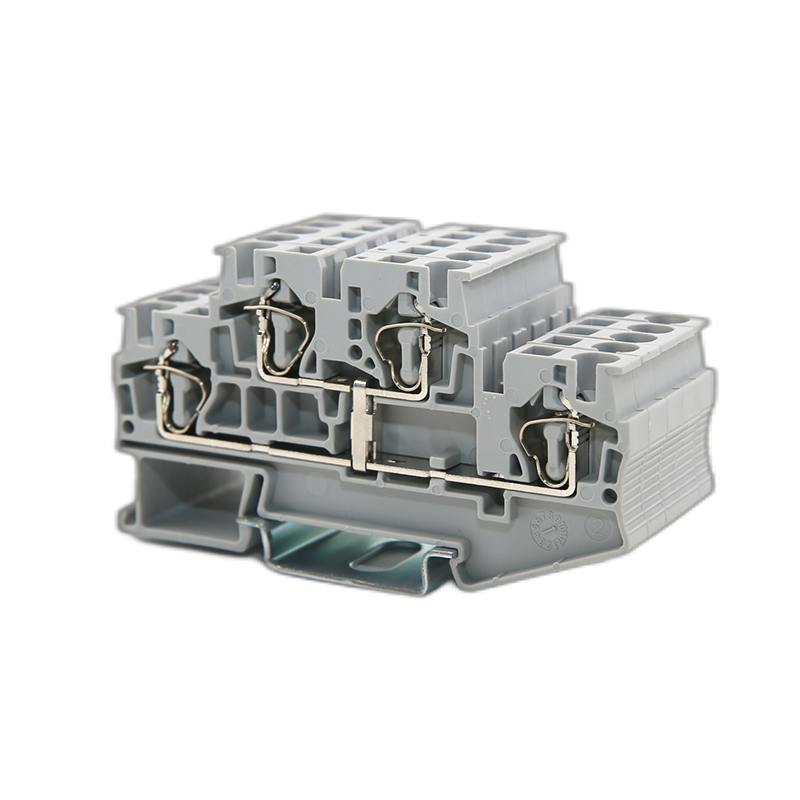

Item No.	RNS2.5/RNS4/RNS6/RNS2.5-TWIN/RNS4-TWIN/RNS6-TWIN/RNS2.5-QUOTTRO/RNS4-QUOTTRO/RNSTB2.5/RNSTB2.5-PV/RNSTB4/RNSTB4-PV/RNS2.5-PE/RNS4-PE/RNS2.5-TWIN-PE/RNS4-TWIN-PE/RNS6-TWIN-PE/RNS2.5-QUOTTRO-PE/RNS4-QUOTTRO-PE/RNSTB2.5-PE/RNSTB4-PE
Material:	PA/Brass
Thickness(mm)	6.2/8.2
Width(mm)	48.5-69.5
Depth(mm)	36.5-43.5
Connection	Spring Cage
Cross Section(mm²)	0.08--10.0(Solid Wire)/0.08-6.0(Flexible Wire)
Rated Voltage(V)	800-1000
Rated Current(A)	24-41
Strip Length(mm)	9-12
Flammability:	V0
Standard	IEC60947-7-1;GB/T14048.7
DIN Rail:	U
Color:	Grey(Optional: Blue/Orange),Yellow-Green
End Plate	D-RNS2.5;4;6;2.5-TWIN;R-TWIN;6-TWIN;2.5-QUOTTRO,4-QUOTTRO;TB2.5;TB4;
Marking Strip:	ZB5-8/UC-TMF5-6
Jumper	FBS 5/6/8
Certificate	CE/RoHS/REACH;

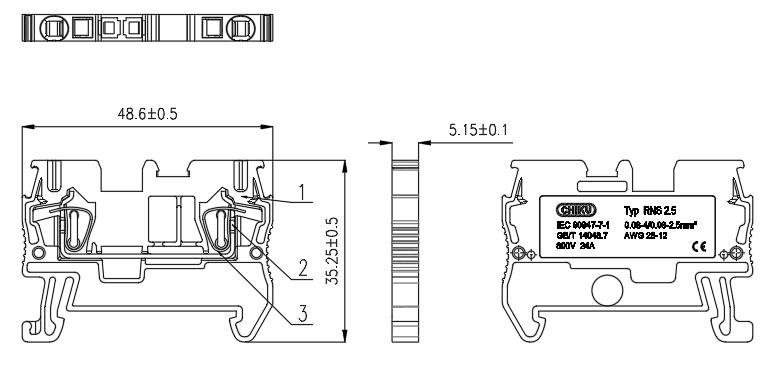

Dimension

BOM

No.	Part Desp.	Material	Surface Finishing	Qty	Color	Remark
1	House	Nylon	/	1	Grey	UL94 V-0
2	Conductor	Brass	Nickel	1	Silver	/
3	Spring	SS	/	2	Silver	/

Accessory

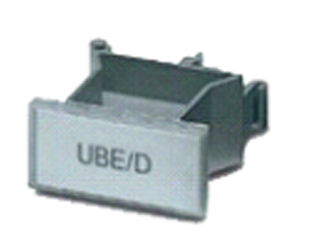

UBE/D

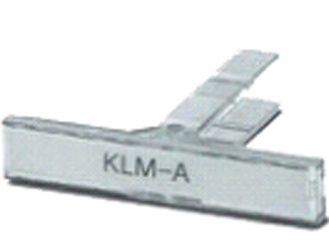

KLM-A

ZB 5

E/UK

Applying for marking terminals, contents can be customized.

Applying for grouping mark inthe middle when terminal is used, for mounting and mark identification in the middle of fastener.

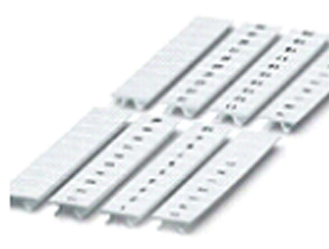

Specially designed for terminal, can be written with blank marker or printed with 1-100 characters under normal circumstances, special characters can be customized.

Applying to fasten terminals at both ends, usually two in a group.

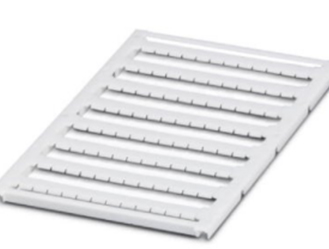

UC-TMF5

D-RNS2.5

DIN Rail

FBS 10-5

Marker, SPECIALLY DESIGNED FOR USE ON BOTH SIDES OF THE TERMINAL, CAN BE WRITTEN WITH BLANK MARKER OR PRINTED 1-100 CHARACTERS UNDER NORMAL CONDITIONS, SPECIAL characters can be customized.

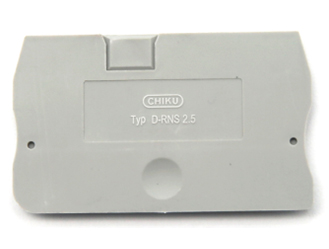

End plate: used for the bare metal part of the terminal at the end of the product to protect the terminal from oxidation.

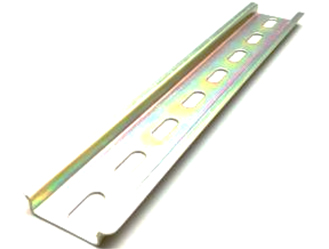

TS35Made of steel, galvanized surface, used for installing and fixing terminal.

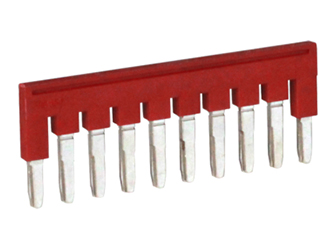

Plug in bridge, used for short circuit connection between terminals, 2 bits, 3 bits, 4 bits, 5 bits and 10 bits can be used to connect according to different situations.
