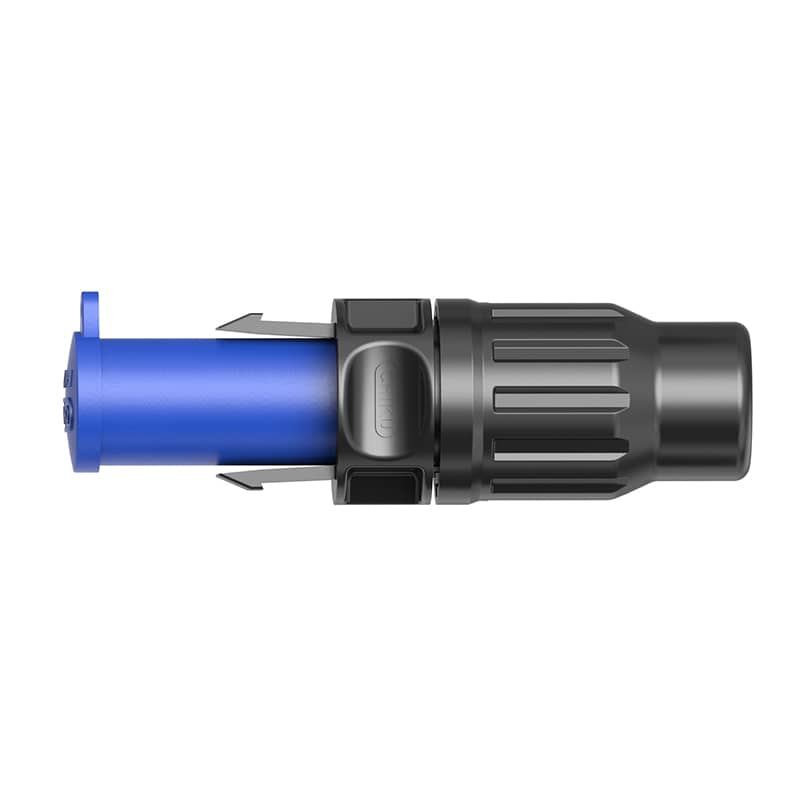

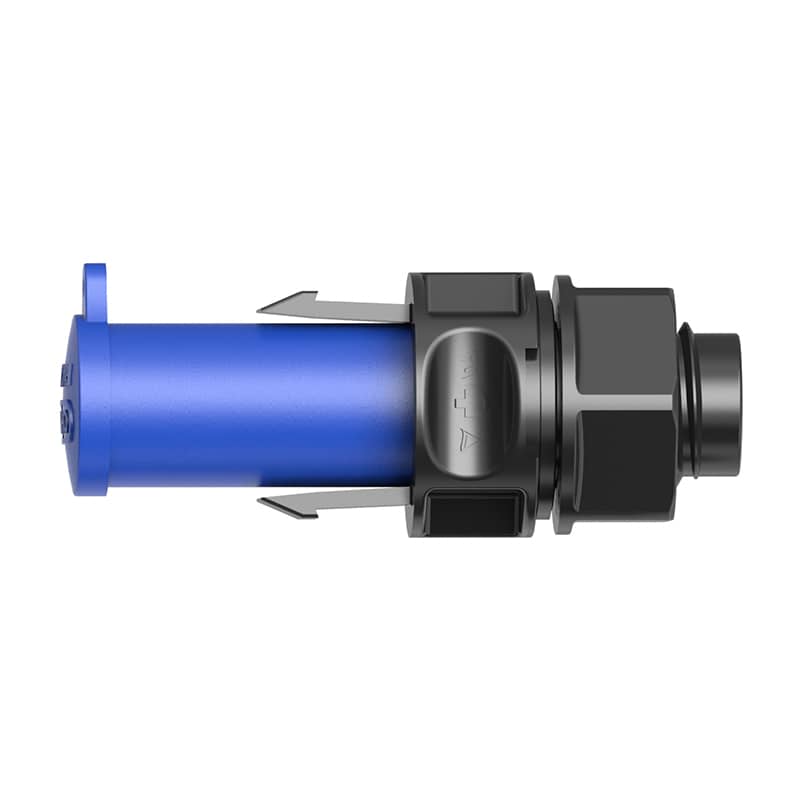

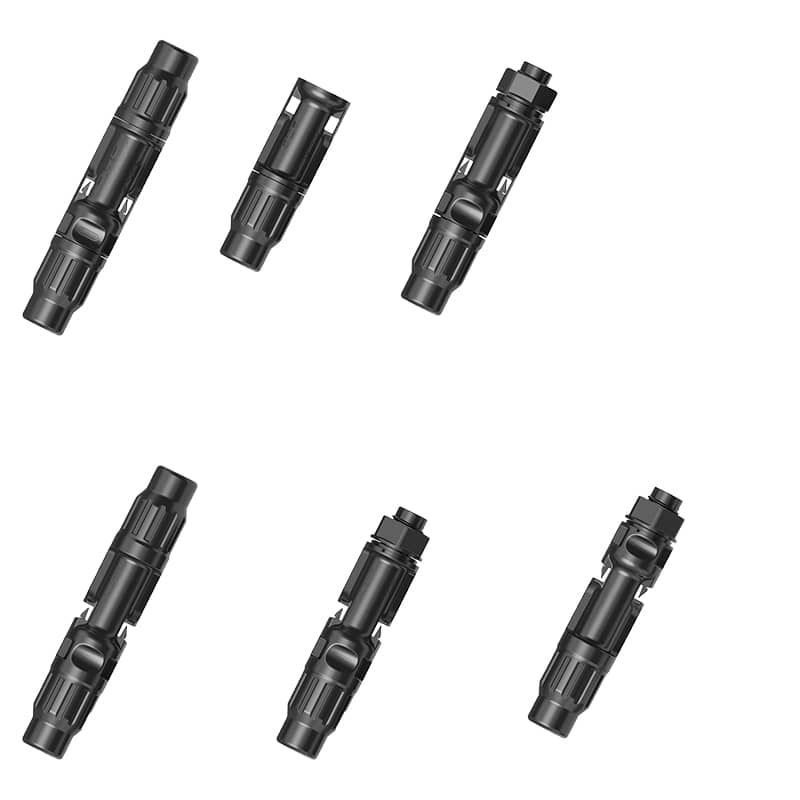

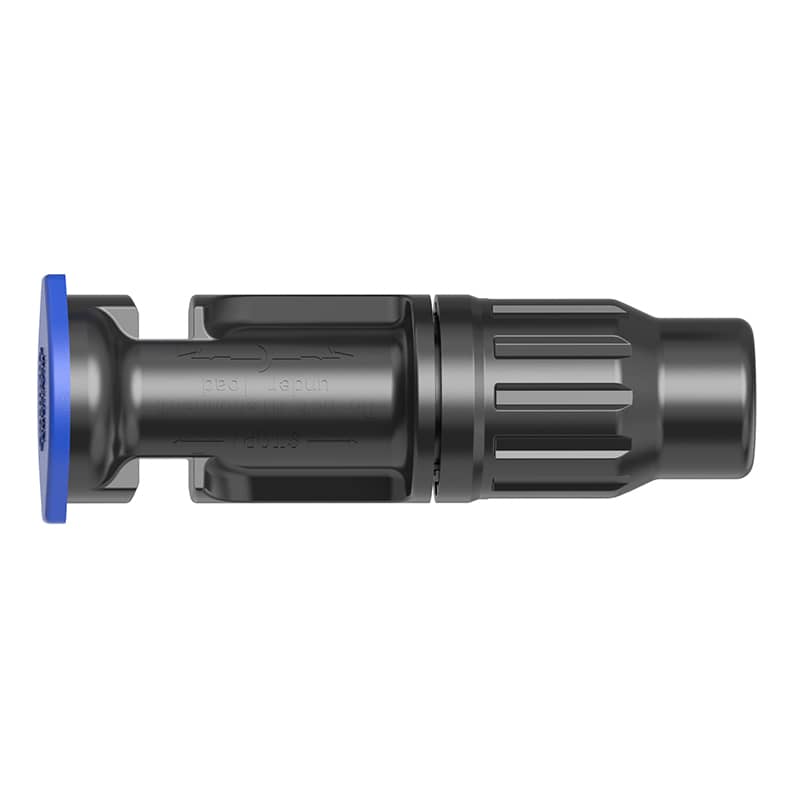

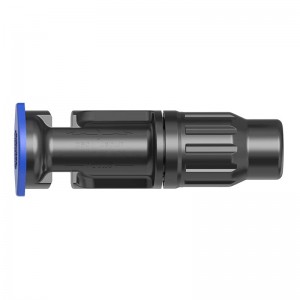

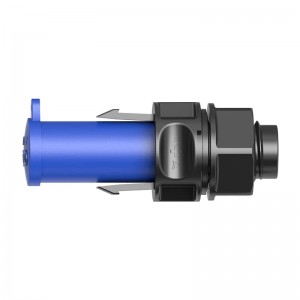

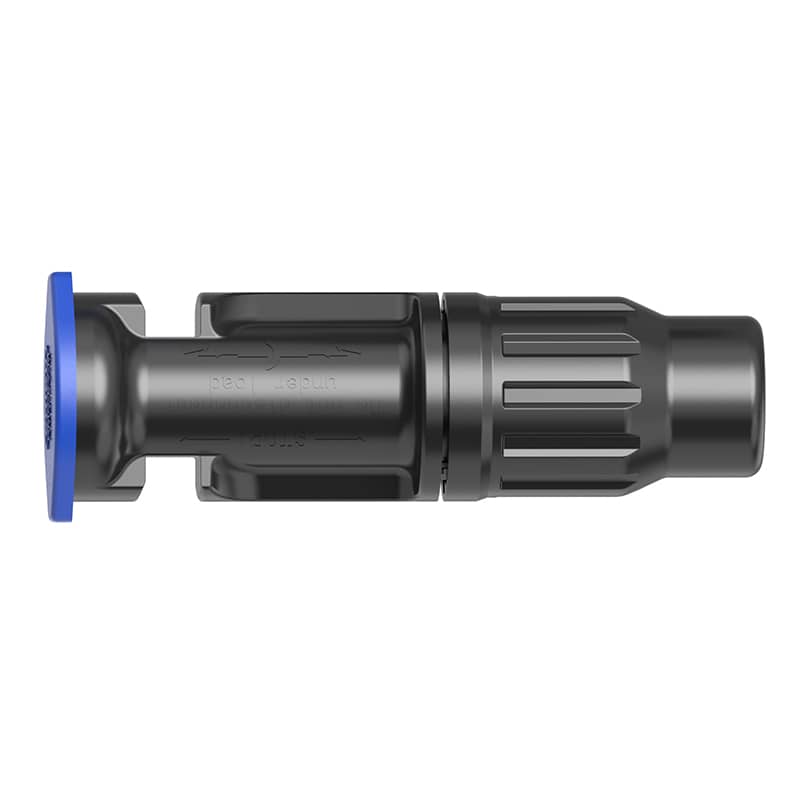

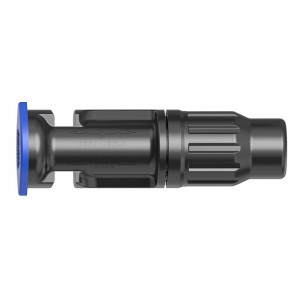

RMC-PV Connector

Short Description:

The DC connector (DC connector) of the PV ground photovoltaic system is mainly used in the electrical connection of photovoltaic module terminal junction boxes, photovoltaic inverters,energy storage equipment, hotovoltaic combiner boxes, and photovoltaic power station arrays.

PV connector refers to the DC connector without breaking capacity for photovoltaic systems of application class A defined in GB/T 20047.1, the rated voltage of which is not more than 1500 V DC,and the rated current is not more than 50 A.

额定电压/Rated Voltage	1500V DC
额定电流/Rated Current	25A (2.5 mm2), 35A/45A (4 mm2/6 mm2), 50A (10 mm2)
接线范围/Wiring range	2.5/4/6/10mm²
工作温度范围/Range of working temperature	-40℃~+105℃
IP等级/Ingress Protection Rating	IP68, 插合后mated(1m,1h)&IP2X 未插合状态,预防手指接触ouch-Proof, Unplugged
污染等级/Pollution Degree	III
阻燃等级/Flammability	UL94 V-0

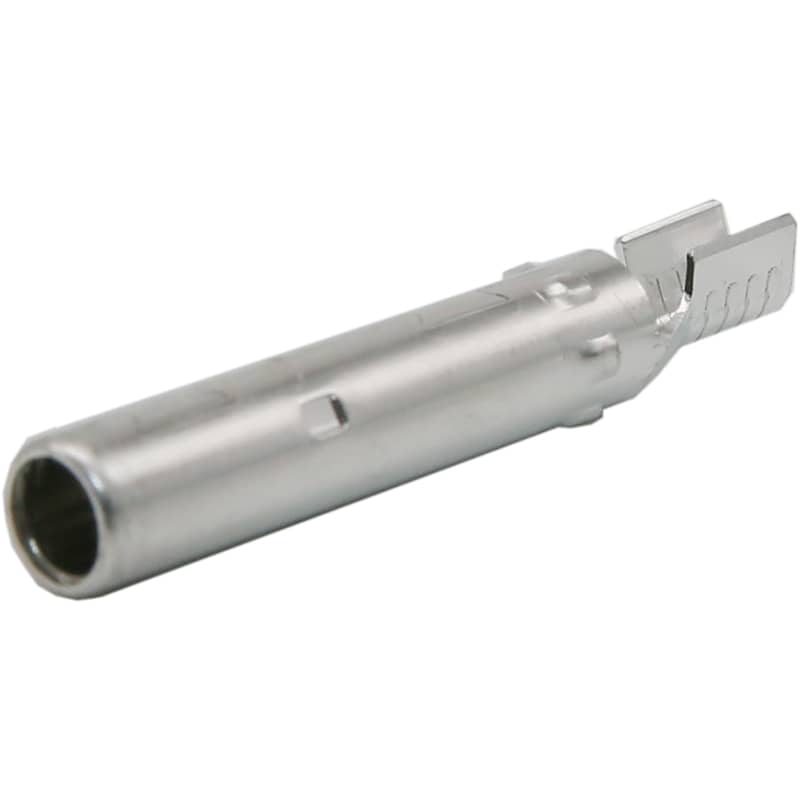

端子类型/Type of Terminal	压接 Crimping

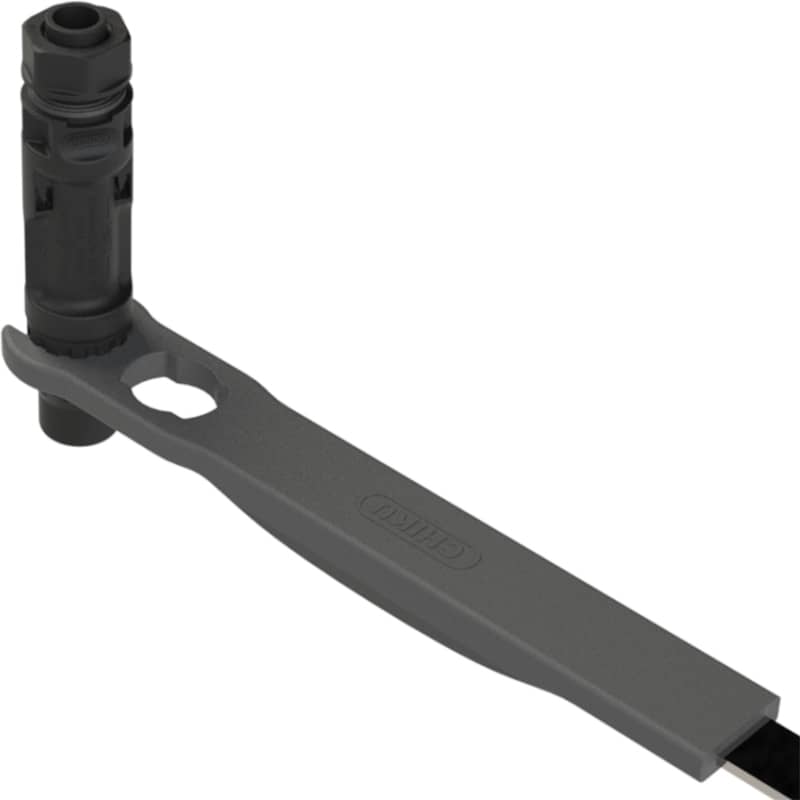

解锁类型/Unlock Options	工具拆卸式/手工拆卸式/Tool Unlock Type or Manual Unlock Type
绝缘材料/Insulation Material	PC/PA
产品标准/Standard	IEC62852,GB/T33765,UL6703,UL-486A-B

RMC 2.5/4-6/10 PV connector: 2.5/4-6/10mm2 PV inverter DC connector

Send email to us

Product Detail

Product Tags

Description

Parameter	Value
Rated Voltage	1500V DC
Rated Current	25A (2.5 mm2), 35A/45A (4 mm2/6 mm2), 50A (10 mm2)
Wiring range	2.5/4/6/10mm2
Range of working temperature	-40℃~+105℃
Ingress Protection Rating	IP68,mated(1m,1h)&IP2X Touch-Proof, Unplugged
Pollution Degree	III
Flammability	UL94 V-0
Type of Terminal	Crimping
Unlock Options	Tool Unlock Type or Manual Unlock Type
Insulation Material	PC/PA
Standard	IEC62852,GB/T33765,UL6703,UL-486A-B
