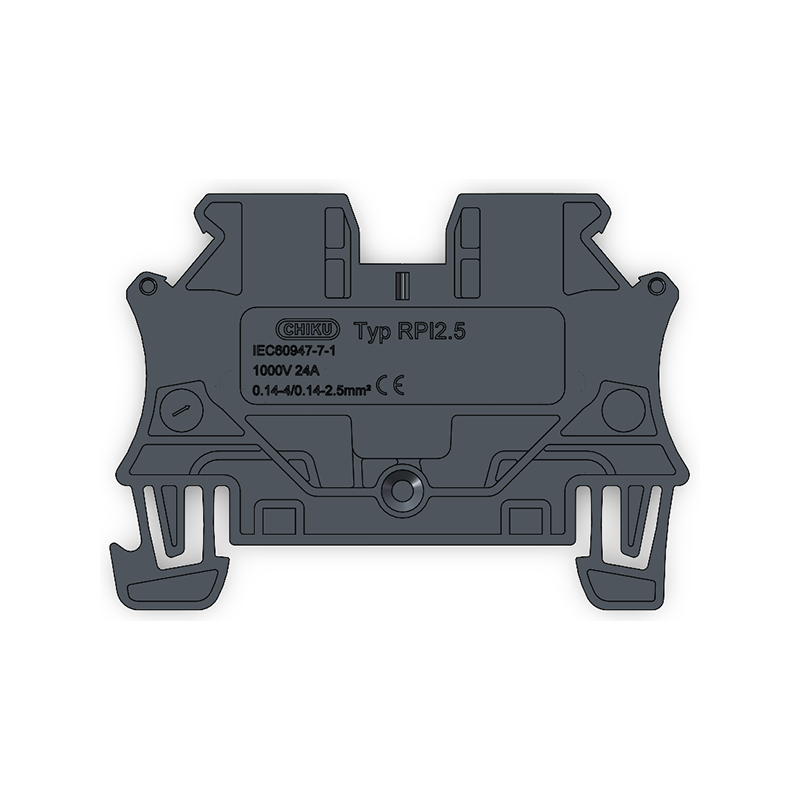

OEM/ODM Supplier Screw Terminal Block - RPI side contact spring terminal – Huntec Detail:

Technical Parameter

Standard：	IEC60947-7-1 GB/T 14048.7
RV/RA：	1000V 24A
Wire Range：	0.14-4mm² （Sol）/ 0.14-2.5mm²（Str）
Flammability：	UL94 V-0
WFV：	AC3500V,1Min
Salt-Spray：	Pass 72H according to GB/T 2423.17
Pollution Grade：	3
Work Temp.：	-40℃～+105℃

Dimension

RPIV1.0 (5)

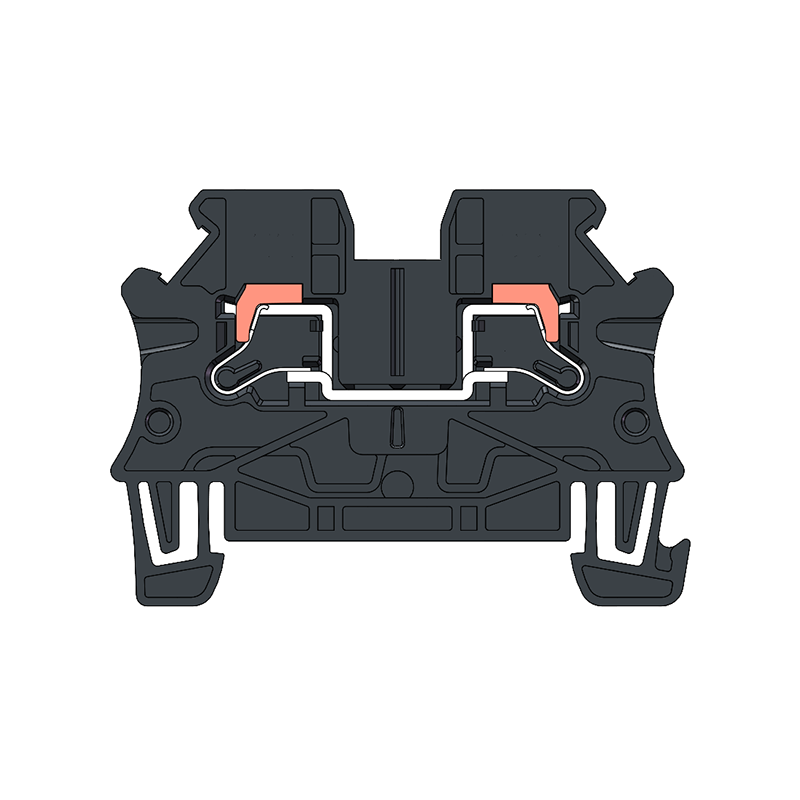

BOM

No.	Part Desp.	Material	Qty	Color	Remark
1	House	PA	1	Iron Grey	UL94 V-0
2	Right press button	PA	1	Orange	/
3	Conductor	Brass	1	Silver	/
4	Right Cage	SS	1	Natural	/
5	Left Press button	PA	1	Orange	/
6	Left Cage	SS	1	Natural	/

Accessory

RPIV1.0 (1)

UBE/D KLM-A ZB5 E/UK(N)

Applying for marking terminals, contents can be customized.

Applying for grouping mark in the middle when terminal is used, for mounting and mark identification in the middle of fastener.

Mark strip, Specially designed for terminal use, can be written with blank mark or printed 1-100 CHARACTERS UNDER normal conditions, SPECIAL characters can be customized.

E/UK(N)Applying to fasten terminals at both ends, usually two in a group.

Applying to close the exposed metal part of the terminal to protect the terminal from oxidation.

FBS 10-5Applying for short circuit connection between terminals, according to different terminal qyt can choose 2, 3, 4, 5 and 10 poles to achieve connection.

TS35/7.5Made of steel, galvanized surface, used for installing and fixing terminal.

Storage Condition

Stored in the air circulation and relative humidity is not more than 80%, the temperature is not higher than +40℃, not less than -10℃ warehouse;
Storage of ambient air free from acidic, alkaline or other corrosive gases.
