MIL wire harness feature

The provincial space PLC uses a small path conductor to reduce the overall line diameter to the optimal value
Universal provides single head, double head cable, a wider range of applications
Beautiful, clean standard plug shell, the overall color coordination, beautiful; the cabinet wiring neat

Item No.	Image	CN1	CN2	Length

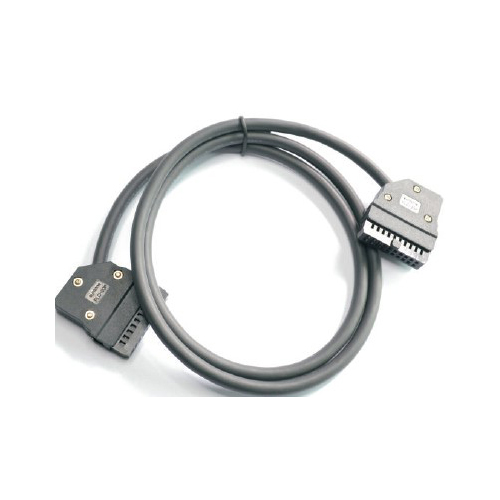

ALP00-1		10P/MIL	10P/MIL	500~2000 Note: the standard length is: 500mm, 1000mm, 1500mm, 2000mm four specifications three specifications, if you need to add 500mm unit incremental MIL wiring harness characteristic wiring diagram ARP608N-1 ARP608P-1 ARP608N-3
ALP00-1D		-	10P/MIL

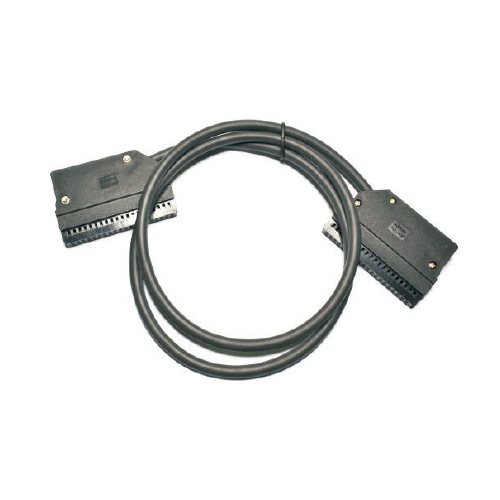

ALP00-2		20P/MIL	20P/MIL
ALP00-2D		-	20P/MIL
ALP00-3		34P/MIL	34P/MIL
ALP00-3D		-	34P/MIL
ALP00-4		40P/MIL	40P/MIL
ALP00-4D		-	40P/MIL

Circuit Diagram

Hole ranking table

2, 40P FCN Transfer MIL harness
The 40P FCN wire harness features:
Save space
Use a trail conductor to reduce the overall line diameter to the optimal value
Universal property
Provide single-head, double-head cable for a wider range of applications
Beautiful, neat
Standard plug shell, the overall color coordination, beautiful; the cabinet wiring neat

Item No.	Image	CN1	CN2	Length

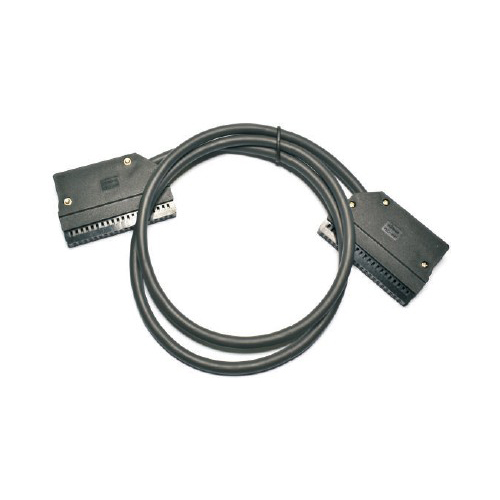

ALP00-5/6		40P/FCN	40P/MIL	500~2000 Note: the standard length is: 500mm, 1000mm, 1500mm, 2000mm four specifications, if you need to increase in 500mm unit increment
ALP00-5D		40P/FCN	-

Circuit Diagram

Hole ranking table
