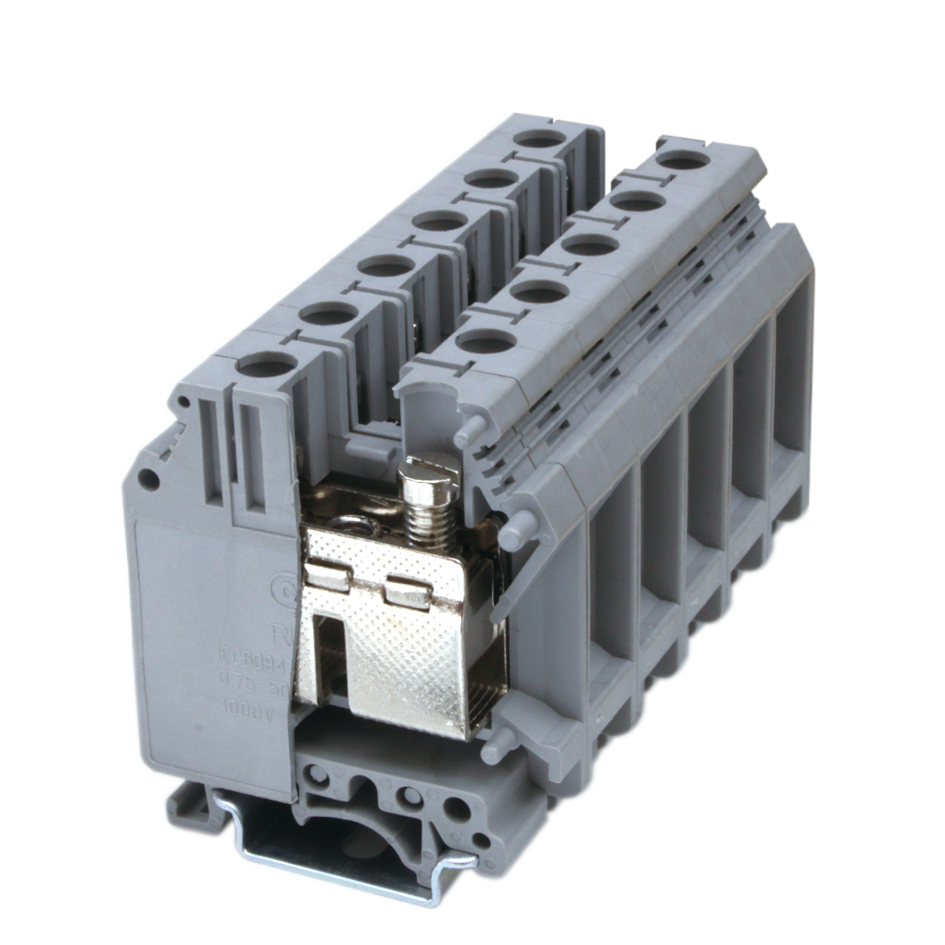

OEM China Terminal Block Din Rail - RUK terminal, mainly used for industrial wiring – Huntec Detail:

Technical Parameter

Standard：	IEC60947-7-1 GB/T14048.7 UL1059
RV/RA：	CE： 690V 17.5A
	CQC：500V 17.5A
Wire Range	0.2-2.5 mm² /0.2-1.5 mm²
Torque：	M2 ：0.2-0.3 Nm
Flammability：	UL94 V-0
WFV	3000V/Min
Salt&Spray Test：	Temp.:35℃ acc.to GB/T10125,Time:48hrs, Result:ok
Pollution Grade：	3
Operation Temp.：	-40℃～+105℃

Dimension

RUK V1.0 (2)

BOM

No.	Description	Material	Finish	Qty	Color	Remark
1	House	PA	/	1	Grey	UL94 V-0
2	Screw	Brass/steel	Nickel	2	Natural	/
3	Conductor	brass	Nickel	1	Natural	/
4	Cage	brass	Nickel	2	Natural	/

Accessory

UBE/D KLM-A UC-TMF6 E/UK(N)

Terminal marker block, used Mark for terminal on guide rail Remember, can write identification number

Used for wiring when the terminal is used, it is used in the middle Grouping marks between, used in fixed Middle mounting and marking identification of pieces

Professional design in Wiring terminals are used in the usual In this case, you can use a blank mark

Write or use typography 1-100 Characters, special characters can be customized

Used in the end The first and the last parts of the device are fixed terminals Function, usually in a group With the two.

It is specially designed for RUK terminal. It is used to close the bare metal part of the terminal at the end of the product to protect the terminal from oxidation.

The terminal grouping partition is used to separate and break the connection between terminals when different terminals are used, and can also play the effect of interval grouping.

TERMINAL short connector, professionally designed for short circuit connection between terminals, 2-10 bits can be connected according to different circumstances.

TS35 Steel material, galvanized surface, used for installation and fixation of terminals.

Storage Condition

Stored in the air circulation and relative humidity is not more than 80%, the temperature is not higher than +40℃, not less than -10℃ warehouse;
Storage of ambient air free from acidic, alkaline or other corrosive gases.
