Manufacturer for 32 Amp Connector Block - RUG-O_Optocouple Functional Terminal Series – Huntec Detail:

Technical Parameter

Prod.Desp.	Din Rail Functional Terminal Block-RUG-O Series Optocoupler
Item No.	RUG-O-110(220)VDC-L-50mA;RUG-O-110(220)VDC-H-50mA; RUG-O-110(220)VAC-L-50mA;RUG-O-110(220)VAC-H-50mARUG-O-5(12)(24)(48)(60)(110)(220)VDC-L-100mA; RUG-O-5(12)(24)(48)(60)(110)(220)VDC-H-100mARUG-O-24(110)(220)VAC-L-100mA; RUG-O-24(110)(220)VAC-H-100mARUG-O-5(12)(24(48)(60)(110)(220)VDC-L-200(300)(500)mA; RUG-O-5(12)(24(48)(60)(110)(220)VDC-H-200(300)(500)mA RUG-O-5(12)(24(48)(60)(110)(220)VAC-L-200(300)(500)mA; RUG-O-5(12)(24(48)(60)(110)(220)VAC-H-200(300)(500)mA RUG-O-5(12)(24)(48)(60)(110)(220)VDC-L-1(2)(5)A; RUG-O-5(12)(24)(48)(60)(110)(220)VDC-H-1(2)A RUG-O-24(48)(60)(110)(220)VAC-L-1(2)A; RUG-O-24(48)(60)(110)(220)VAC-H-1(2)A
Material:	PA/Brass
Thickness(mm)	6.2
Width(mm)	59.3
Depth(mm)	65.8
Connection	Screw(M3)
Cross Section(mm²)	0.2–6.0
Rated Voltage(V)	5/12/24/48/60/110/220
Rated Current(A)	50mA/100mA/200mA/300mA/500mA/1A/2A/5A
Strip Length(mm)	9-10
Flammability:	V0
Standard	IEC60947-5-1;GB/T14048.5
DIN Rail:	U
Color:	Grey
Operation Temp.	-25℃–+70℃
Area Humility	5%-95%
IP Level	IP20
Surge Anti-interference	2KV
Group Pulse Anti-Interference	4KV
ESD Anti-interference	8KV
Certificate	CE

Feature:
With the continuous improvement of the degree of automation, the isolation between control and field circuits has increasingly shown importance. As the
core of the automatic control system, the control unit must be reliably isolated from the sensors and actuators to avoid interference. The company’s
optocoupler module can perform the above functions well, and can also be used as a peripheral device for process control to control, signal and
adjust the interface components of the connection between the device. Suitable for different voltage and power ranges, etc. Since photoelectric coupling
can provide the necessary safety interface and has the following characteristics, it is widely used in actual use.

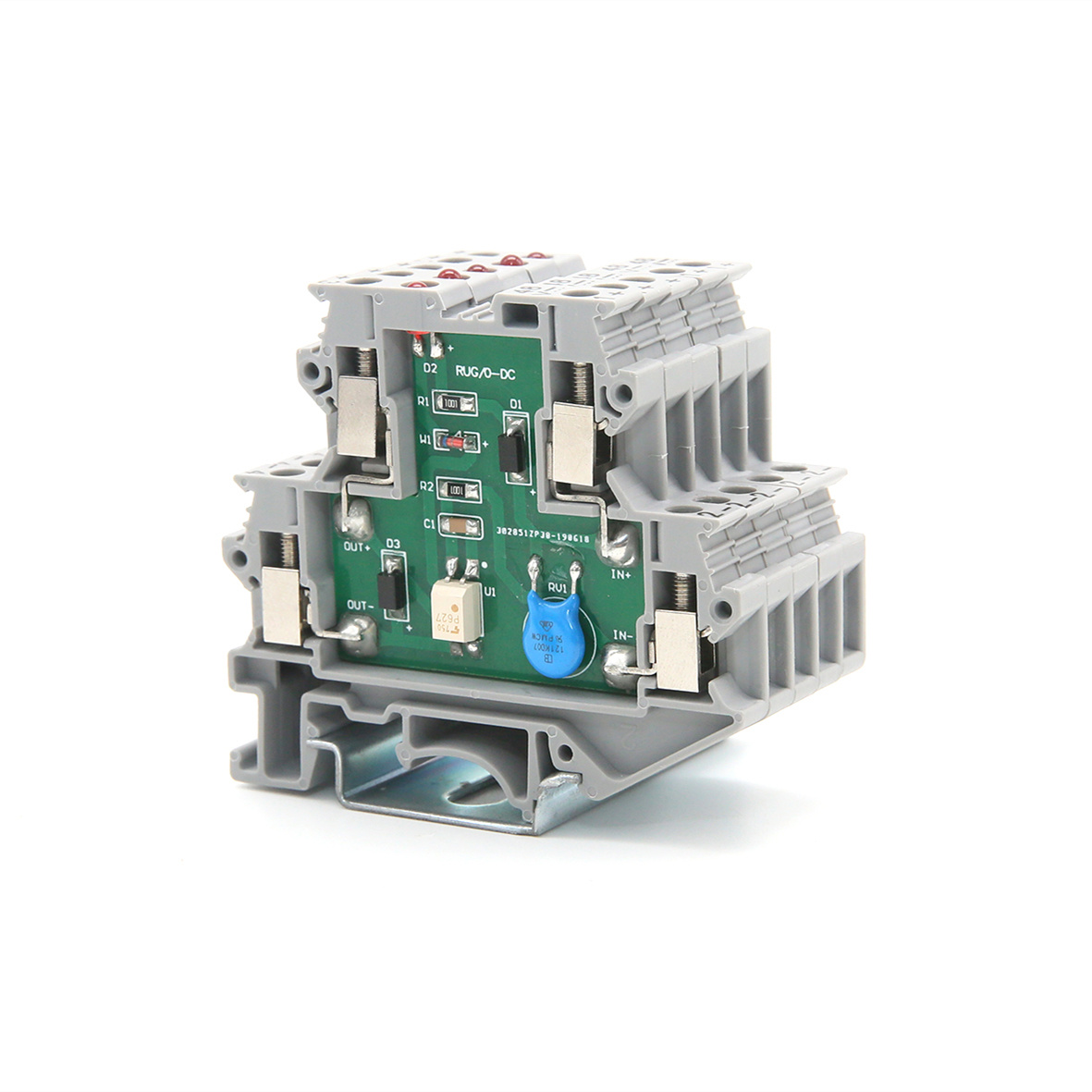

Product detail pictures:
