Fast delivery Marine Terminal Block - RUG-R relay embedded terminal block – Huntec Detail:

Technical Parameter

Spec Model No	RUG-R-DC5V	RUG-R-DC12V	RUG-R-DC24V	RUG-R-DC48V
Input RV:Ｕn	DC5V	DC12V	DC/AC24V	DC/AC48V
Input RV Range（Ｕn）	+20%/-10%	±20%	±20%	±20%
Ｕn Input Current	<33mA	<16mA	<18mA	<10mA
pull-in voltage	≧75%Ｕn
Release voltage	≦5%Ｕn
Response time（Ｕn ）	≤8ms	≤8ms	≤8ms	≤8ms
releasing time（Ｕn）	≤5ms	≤6ms	≤5ms	≤5ms
Output maximum switching voltage	250VAC/30VDC
Maximum switching current (negative resistance	） 6A
Max Switching Power	1500VA/180W
maximum operating frequency	360times/h
Contact material/contact form	Silver alloy/1open end
Input voltage withstand	1800VAC 1min
Output end withstand voltage	1000VAC 1min
Surge immunity	2KV
EFT	4KV
Mechanical life/electrical life	1107／610４（6Ａ 250VAC/30VDC,resistance load 85℃,on 1s off 9s）
Ambient temperature	-40℃～+85℃
storage temperature	-40℃～+85℃
Working Relative Humidity	5%～85%
Working Altitude	<2000ｍ
Pollution Grade	２
Installation mode/connection mode	Ｕ/Ｇ Din rail mounting／M3
Wire Range	IEC:0.2～6ｍｍ２（Sol）,0.2～4ｍｍ２（Str），24～10AWG

	RUG-R-DC60V	RUG-R-DC110V	RUG-R-DC220V
Input RV:Ｕn	DC/AC60V	DC/AC110V	DC/AC220V
Input RV Range（Ｕn）	±20%
Ｕn Input Current	<10mA	<6mA	<6mA
pull-in voltage	≧75%Ｕn
Release voltage	≦5%Ｕn
Response time（Ｕn ）	≤8ms	≤8ms	≤8ms
releasing time（Ｕn）	≤6ms	≤4ms	≤4ms
Output maximum switching voltage	250VAC/30VDC
Maximum switching current (negative resistance	） 6A
Max Switching Power	1500VA/180W
maximum operating frequency	360times/h
Contact material/contact form	Silver alloy/1open end
Input voltage withstand	1800VAC 1min
Output end withstand voltage	1000VAC 1min
Surge immunity	2KV
EFT	4KV
Mechanical life/electrical life	1107／610４（6Ａ 250VAC/30VDC,resistance load 85℃,on 1s off 9s）
Ambient temperature	-40℃～+85℃
storage temperature	-40℃～+85℃
Working Relative Humidity	5%～85%
Working Altitude	<2000ｍ
Pollution Grade	２
Installation mode/connection mode	Ｕ/Ｇ Din rail mounting／M3
Wire Range	IEC:0.2～6ｍｍ２（Sol）,0.2～4ｍｍ２（str），24～10AWG

Dimension

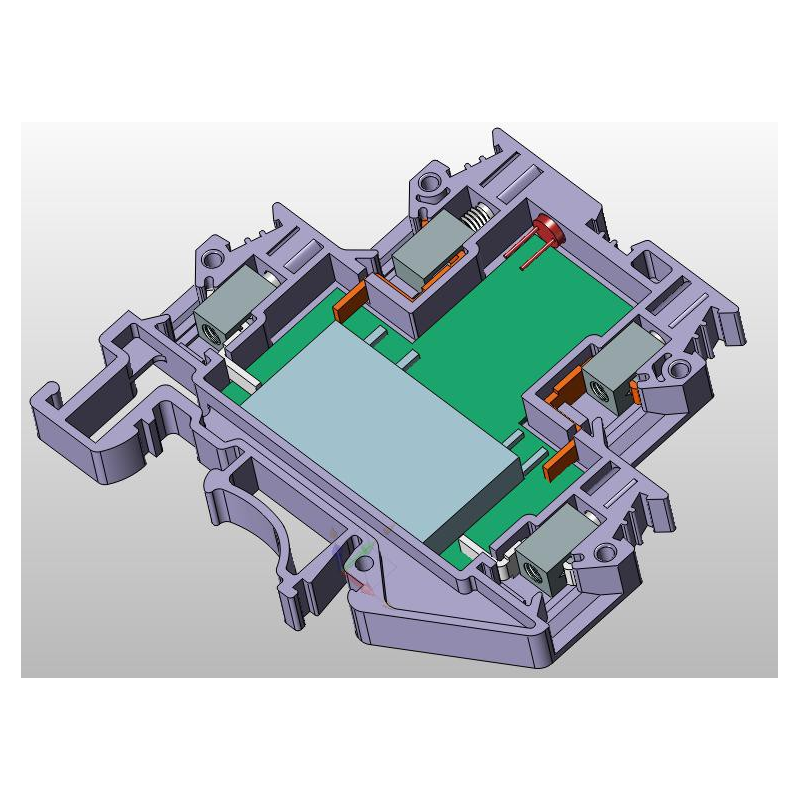

Layout（unit：mm）

RUG-R-0001 (1)
RUG-R-0001 (6)

Diagram of electrical connection

Caution

●The company shall be responsible for the quality problems caused by unauthorized disassembly of the product;
●Please do not debug the characteristics of the terminal at willing. The factory will not be responsible for the product quality problems caused by this.
