Technical Parameter
| Prod.Desp. | Din Rail Functional Terminal Block-RUG/D Series Diode |
| Item No. | RUG/D-A;RUG/D-B;RUG/D-C;RUG/D-D;RUG/D-E |
| Material: | PA/Brass |
| Thickness(mm) | 6.2 |
| Width(mm) | 56 |
| Depth(mm) | 62 |
| Connection | Screw |
| Cross Section(mm2) | 0.2–6.0(Solid Wire)/0.2-4.0(Flexible Wire) AWG16-10 |
| Rated Voltage(V) | 500 |
| Rated Current(A) | 32 |
| Strip Length(mm) | 8 |
| Flammability: | V0 |
| Standard | IEC60947-7-1;GB/T14048.7 |
| DIN Rail: | U/G |
| Color: | Grey(Optional: Yellow,Orange) |
| End Plate | D-RUKK3/5 |
| Marking Strip: | ZB6 |
| Jumper | FBI/EB10-6 |
| Certificate |
Diode model: 1N4007
Reverse breakdown voltage: 1000V
Max continuous current: 0.5A

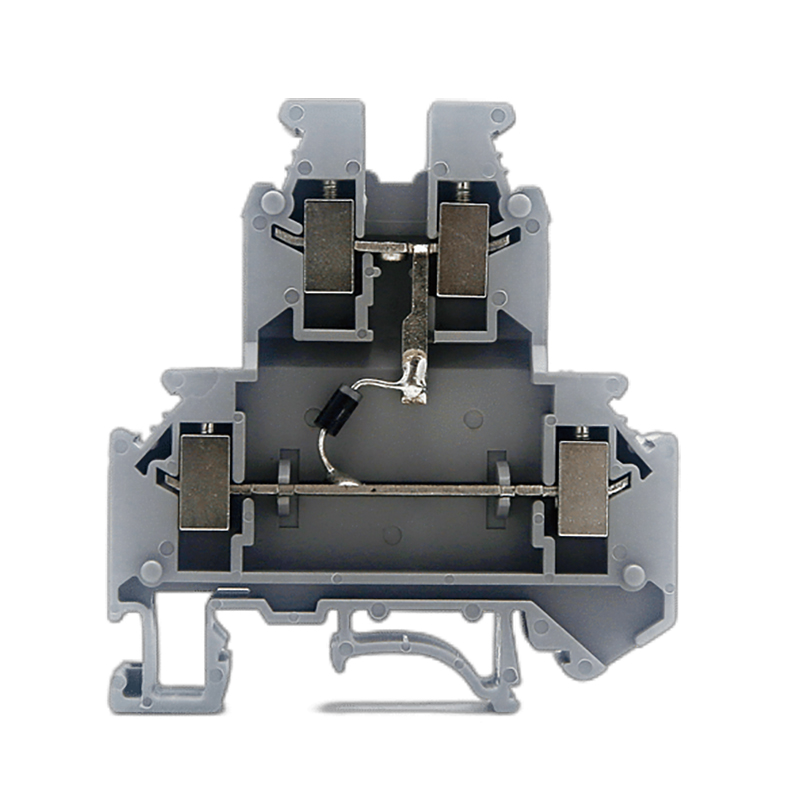

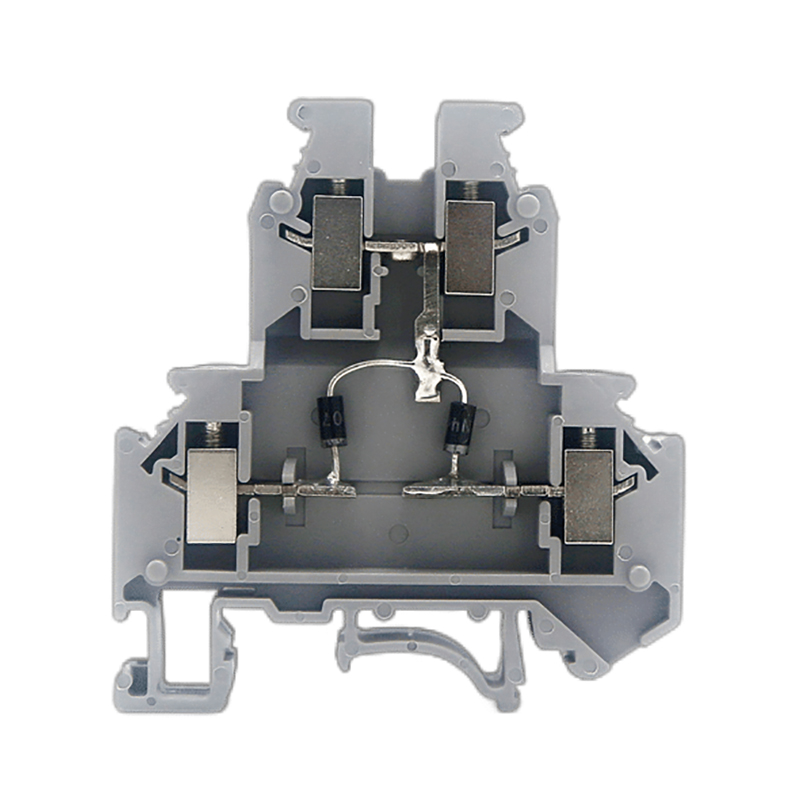

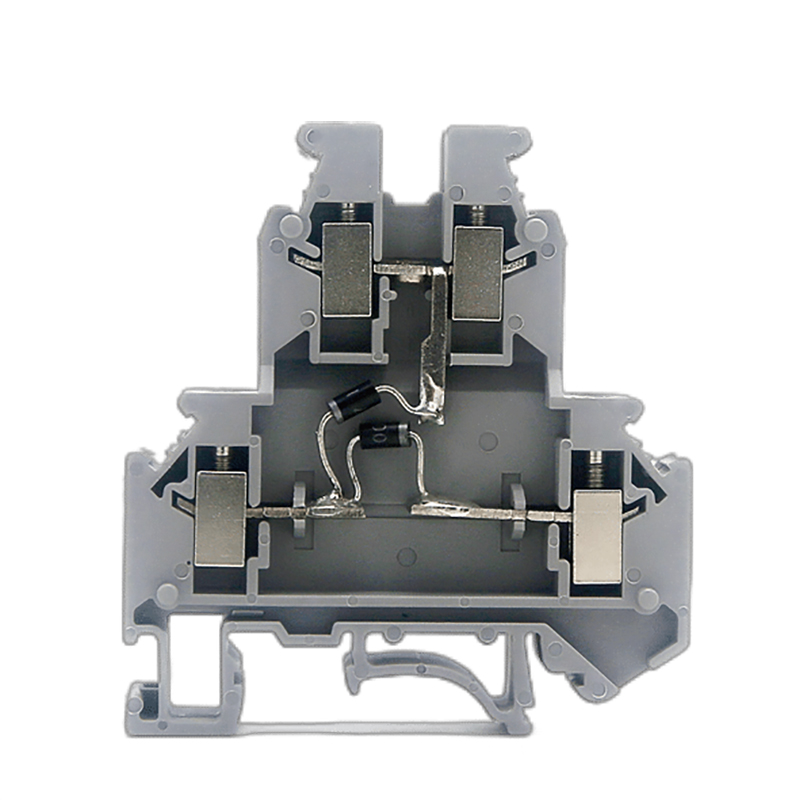

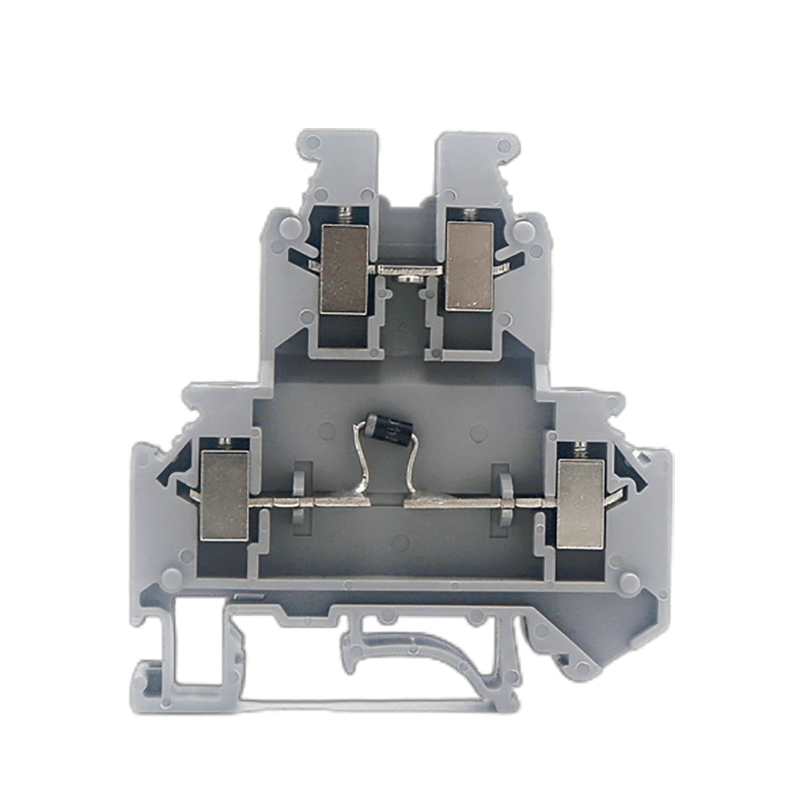

Product detail pictures:
