Cheap PriceList for Types Of Terminal Blocks - RUG-R_Relay Functional Terminal Series – Huntec Detail:

Technical Parameter

Prod.Desp.	Din Rail Functional Terminal Block-RUG-R Series Relay built-in
Item No.	RUG-R-5VDC-250VAC/30VDC-6A; RUG-R-12VDC-250VAC/30VDC-6A; RUG-R-24VDC-250VAC/30VDC-6A;RUG-R-24VAC/DC-250VAC/30VDC-6A; RUG-R-48VAC/DC-250VAC/30VDC-6A;RUG-R-60VAC/DC-250VAC/30VDC-6ARUG-R-110VAC/DC-250VAC/30VDC-6A;RUG-R-220VAC/DC-250VAC/30VDC-6A
Material:	PA/Brass
Thickness(mm)	6.2
Width(mm)	59.3
Depth(mm)	65.8
Connection	Screw(M3)
Cross Section(mm²)	0.2–6.0(Solid wire)/0.2-4.0(Flexible wire)
Rated Voltage(V)	5/12/24/48/60/110/220
Rated Current(A)	6A
Strip Length(mm)	9-10
Flammability:	V0
Standard	IEC61810-1/GB/T21711.1;IEC61010-2-201/GB4793.1
DIN Rail:	U
Color:	Grey
Contact	Pair Open
Contact Material	Silver Alloy
Max.Switch Power	1500VA.180W
Surge Anti-interference	2KV
Group Pulse Anti-Interference	4KV
ESD Anti-interference	8KV
Certificate	CE

It is composed of a standard wiring base terminal and a small relay with wiring contacts. It is used for I/O interface of industrial control.
It can be used as an output relay or to increase the number of protection and control loop contacts and expand the capacity.

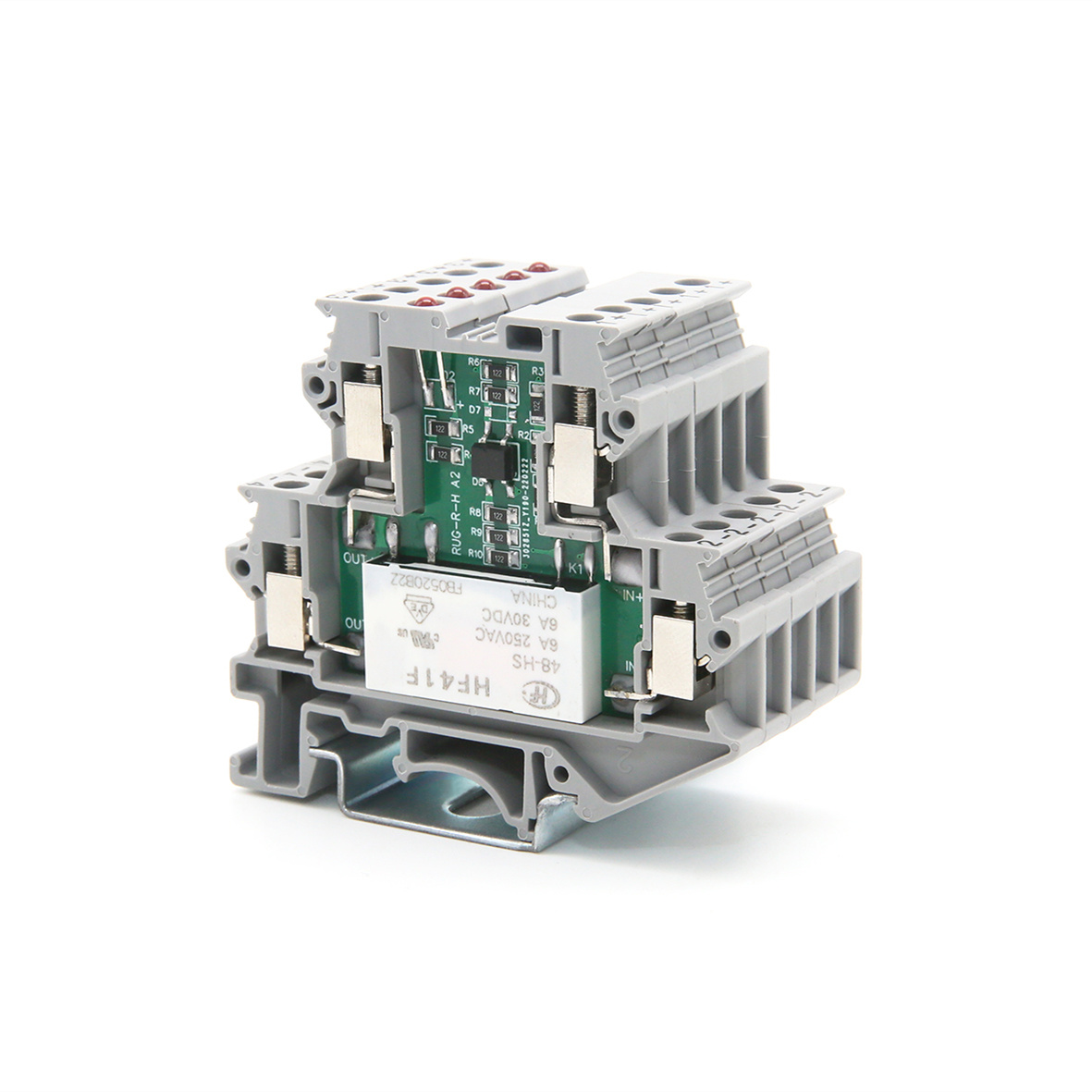

Product detail pictures:
